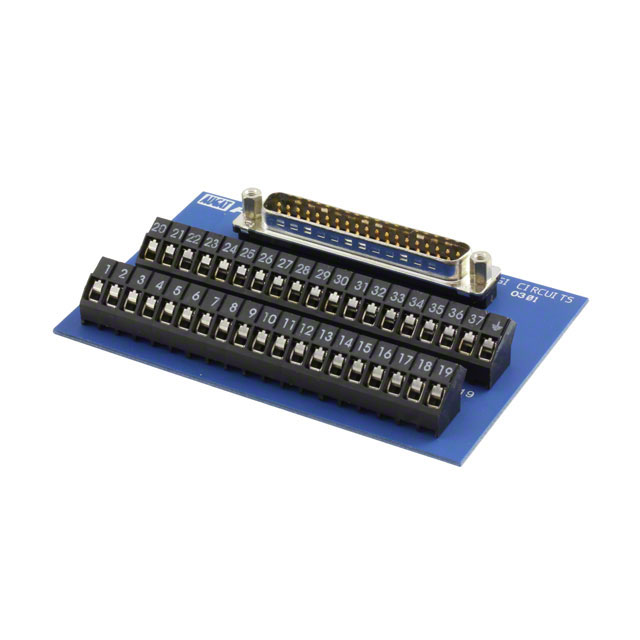

2M37DSM

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Interface Modules

RoHS Status :

Non-RoHS Compliant

Operating Temperature :

120°C

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Pbfree Code :

No

Width :

2.750 69.85mm

Length :

4.310 109.47mm

Current Rating (Per Contact) :

10A

Series :

2M, Buchanan

Voltage - Rated :

300V

Control Side Connection :

D-Sub, Male

Reach Compliance Code :

not_compliant

Additional Feature :

POLYESTER, 94V-0

Positions / Poles :

37

Number of Ways :

37

Control Side Cable Retainer :

Jackscrew Socket

Factory Lead Time :

21 Weeks

Wire Gauge :

14-22 AWG

Safety Approval :

UL

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Process Side Connection :

Terminal Blocks - Screw Connection

ECCN Code :

EAR99

Published :

2007
