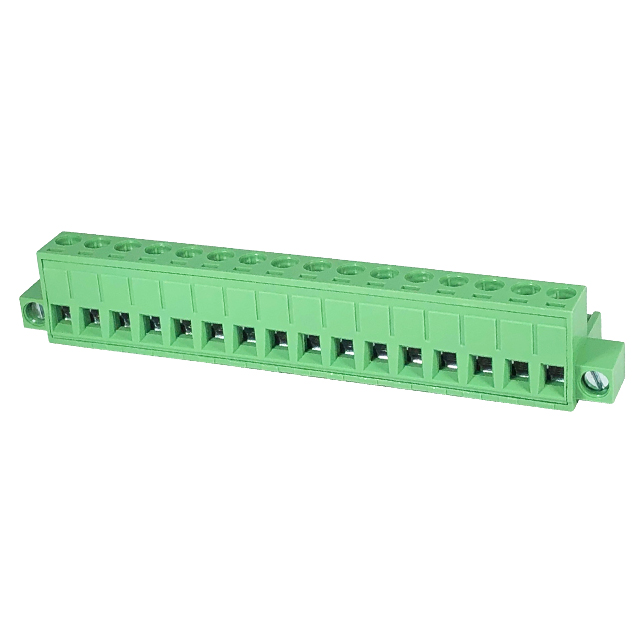

2ESDVM-16P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Package :

Bulk

Series :

2ESDVM

Rated Voltage :

300 V

Product Status :

Active

Positions Per Level :

16

Current - IEC :

18A

Voltage - IEC :

600 A

Rated Current :

15 A

Operating Temperature :

-40°C ~ 120°C

Number of Ways :

16

Wire Gauge or Range - mm² :

0.2-2.5mm²

Number of Positions :

16

Fastening Method :

Screw

Features :

Mating Flange

ECCN Code :

EAR99

Number of Levels :

1

Number of Rows :

1

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Decks :

1

HTS Code :

8536.69.40.40

Wire Gauge :

12 AWG

Pbfree Code :

yes

Wire Gauge or Range - AWG :

12-30 AWG

Color :

Green

Current - UL :

15 A

Plug Wire Entry :

180°

Mounting Type :

Free Hanging (In-Line)

Header Orientation :

-

Reach Compliance Code :

Compliant

Termination Style :

Screw

Type :

Plug, Female Sockets

Voltage - UL :

300 A

Pitch :

0.200 (5.08mm)

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Wire Cross Section :

2.5 mm2
