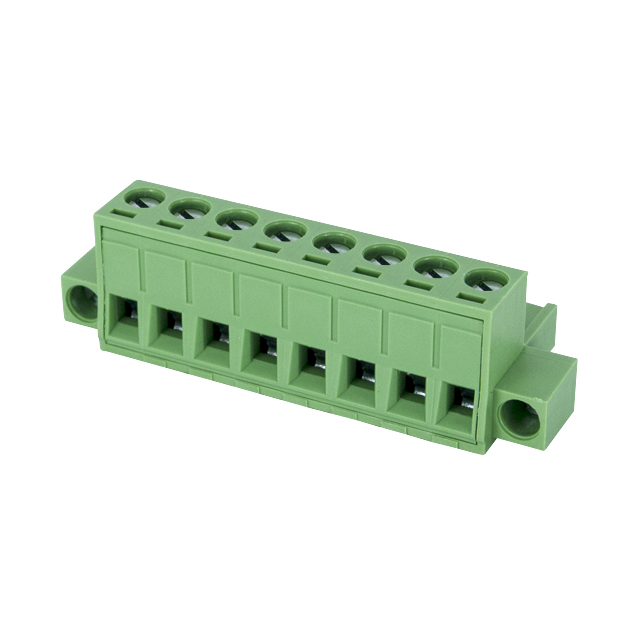

2ESDVM-08P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-40°C ~ 120°C

Plug Wire Entry :

180°

Mounting Type :

Free Hanging (In-Line)

Number of Decks :

1

Rated Current :

15 A

Fastening Method :

Screw

Number of Rows :

1

Wire Gauge or Range - mm² :

0.2-2.5mm²

Color :

Green

Type :

PLUG

Manufacturer :

Dinkle Enterprises

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Wire Cross Section :

2.5 mm2

Wire Gauge :

12 AWG

Voltage - IEC :

600 V

Packaging :

Box-packed

Number of Levels :

1

Rated Voltage :

300 V

Pitch :

0.200" 5.08mm

Voltage - UL :

300 V

Termination Style :

Screw - Rising Cage Clamp

Positions Per Level :

8

Reach Compliance Code :

Compliant

Contact Mating Finish :

Tin

Number of Positions :

8

Number of Poles :

8

Current - IEC :

18A

Current - UL :

15 A

Product Status :

Active

Wire Gauge or Range - AWG :

12-30 AWG

RoHS Status :

RoHS Compliant

Number of Ways :

8

ECCN Code :

EAR99

Pbfree Code :

yes

Features :

Mating Flange

Header Orientation :

-

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Package / Case :

P=5.08mm

HTS Code :

8536.69.40.40
