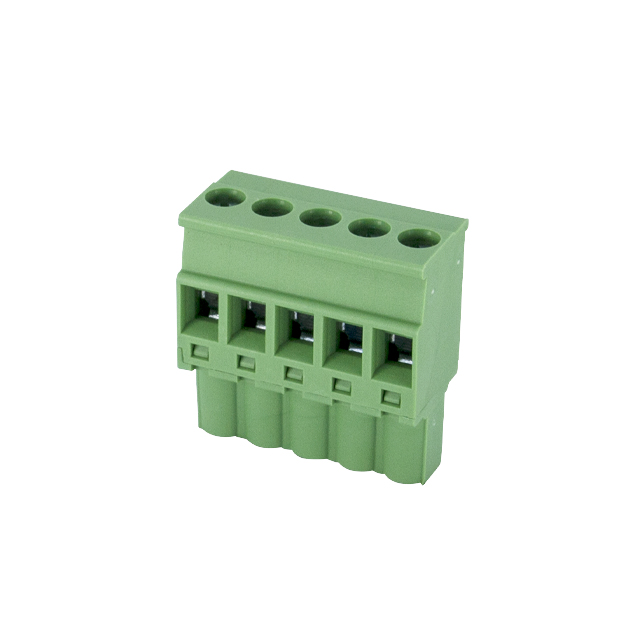

2ESDPL-05P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Wire Gauge or Range - mm² :

0.2-2.5mm²

Size / Dimension :

0.984 Dia (25.00mm)

Features :

-

Packaging :

Bulk

Contact Mating Finish :

Tin

Mounting Type :

Through Hole

Lead Spacing :

0.394 (10.00mm)

Number of Levels :

1

RoHS :

Non-Compliant

Package / Case :

Radial, Can - Snap-In

Type :

Plug, Female Sockets

Plug Wire Entry :

270°

Wire Gauge or Range - AWG :

12-30 AWG

Voltage - UL :

300 V

Moisture Sensitivity Level (MSL) :

--

Surface Mount Land Size :

--

ESR (Equivalent Series Resistance) :

600 mOhm @ 100Hz

Positions Per Level :

5

Polarization :

Polar

Current - IEC :

18A

Header Orientation :

-

Product Status :

Active

Applications :

GENERAL PURPOSE

Voltage - Rated :

400V

Package :

Bulk

Lifetime @ Temp. :

10000 Hrs @ 85°C

Operating Temperature :

-40°C ~ 85°C

Current - UL :

15 A

Height - Seated (Max) :

1.260 (32.00mm)

Voltage - IEC :

600 V

Impedance :

820 mOhms

Capacitance :

180µF

Termination Style :

Screw - Rising Cage Clamp

Color :

Green

Series :

B43601

Pitch :

0.200 (5.08mm)

Tolerance :

±20%

Ratings :

--

Ripple Current @ Low Frequency :

1.25A @ 100Hz

Number of Positions :

5
