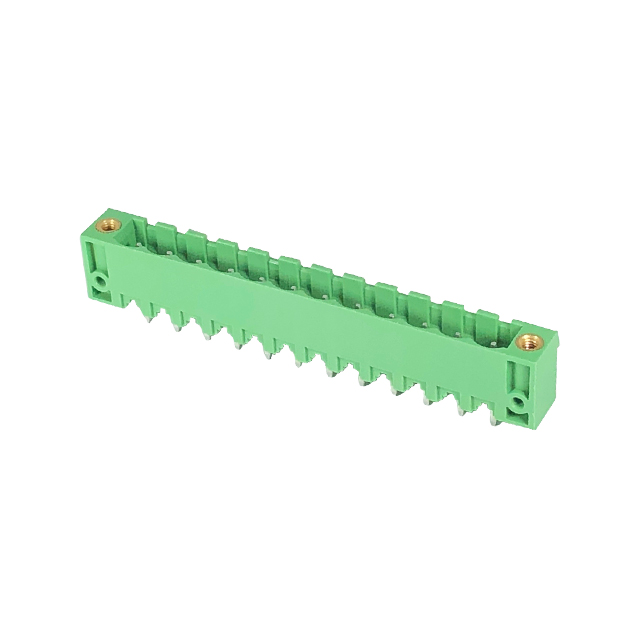

2EHDVM-12P
Or copy the link below:
- Mfr.Part #
- 2EHDVM-12P
- Manufacturer
- DINKLE Corporation USA
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 12POS 5.08MM HDR
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- DINKLE Corporation USA
- Product Category :
- Headers, Plugs and Sockets
- Product Status :
- Active
- Color :
- Green
- Wire Gauge or Range - AWG :
- -
- Termination Style :
- Solder
- Package :
- Retail Package
- Wire Gauge or Range - mm² :
- -
- Number of Positions :
- 12
- Voltage - IEC :
- 630 V
- Current - IEC :
- 18A
- Series :
- *
- Pitch :
- 0.200 (5.08mm)
- Number of Levels :
- 1
- Contact Mating Finish :
- Tin
- Plug Wire Entry :
- -
- Operating Temperature :
- -40°C ~ 120°C
- Positions Per Level :
- 12
- Mounting Type :
- Through Hole
- Features :
- Mating Flange
- Header Orientation :
- Vertical
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Voltage - UL :
- 300 V
- Current - UL :
- 15 A
- Datasheets
- 2EHDVM-12P
0.200 (5.08mm) Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) * Tin
2EHDVM-12P Overview
This device has a Through Hole mounting type.Specifically, it is one of the products in the * Series.Devices operate at -40°C ~ 120°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
2EHDVM-12P Features
* series
2EHDVM-12P Applications
There are a lot of Dinkle
2EHDVM-12P Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
