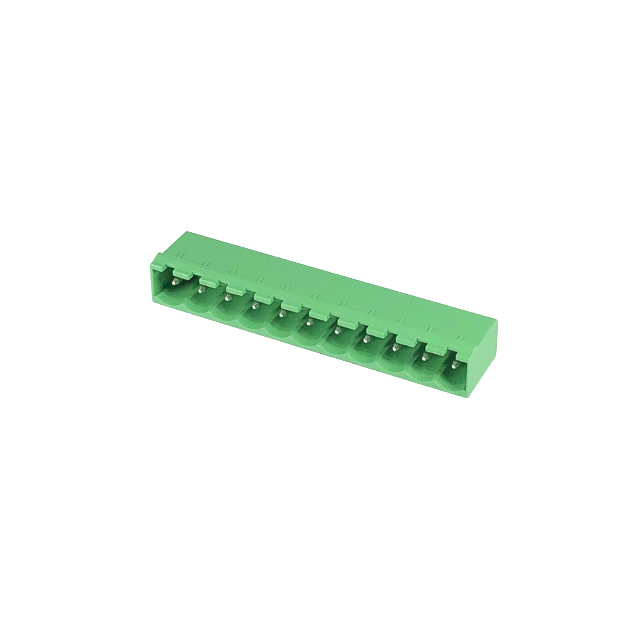

2EHDVC-11P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Header Orientation :

Vertical

Plug Wire Entry :

-

Size / Dimension :

--

Ratings :

--

Pitch :

0.200 (5.08mm)

Mounting Type :

Through Hole

Operating Temperature :

-55°C ~ 125°C

Number of Positions :

11

Height - Seated (Max) :

--

Number of Levels :

1

Color :

Green

Package / Case :

Axial, Can

Series :

B41694

Voltage - Rated :

25V

Packaging :

Bulk

Tolerance :

-10%, +30%

Current - UL :

15 A

Type :

Header, Male Pins, Shrouded (4 Side)

Wire Gauge or Range - AWG :

-

Applications :

Automotive

Termination Style :

Solder

Ripple Current @ High Frequency :

4.3A @ 10kHz

Moisture Sensitivity Level (MSL) :

--

Lead Spacing :

0.098 (2.50mm)

Package :

Bulk

Product Status :

Active

ESR (Equivalent Series Resistance) :

51 mOhm @ 100Hz

Polarization :

Polar

Voltage - IEC :

600 A

Lifetime @ Temp. :

5000 Hrs @ 125°C

Positions Per Level :

11

Features :

-

Voltage - UL :

300 A

Current - IEC :

18A

Wire Gauge or Range - mm² :

-

Surface Mount Land Size :

--

Capacitance :

1500μF
