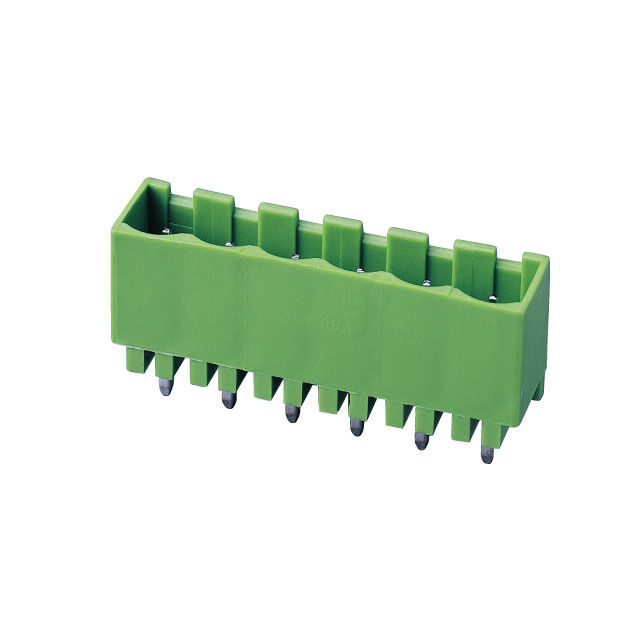

2EHDVC-06P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Operating Temperature :

-40°C ~ 120°C

Product Status :

Active

Pitch :

0.200 (5.08mm)

Composition :

Thin Film

Number of Positions :

6

Header Orientation :

Vertical

Features :

-

Resistance :

569 kΩ

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Plug Wire Entry :

-

Reach Compliance Code :

Compliant

Height :

650 µm

Number of Rows :

1

Fastening Method :

Connector

Package :

Bulk

Current - UL :

15 A

HTS Code :

8536.69.40.40

Mounting Type :

Through Hole

Pbfree Code :

yes

Number of Decks :

1

Max Operating Temperature :

155 °C

ECCN Code :

EAR99

Color :

Green

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

Min Operating Temperature :

-55 °C

Number of Levels :

1

Temperature Coefficient :

50 ppm/°C

Power Rating :

500 mW

Voltage - UL :

300 V

Rated Current :

15 A

Tolerance :

0.1 %

Voltage Rating :

150 V

Current - IEC :

18A

Number of Ways :

6

Rated Voltage :

300 V

Type :

Header, Male Pins, Shrouded (4 Side)

Contact Mating Finish :

Tin

Voltage - IEC :

630 V

Manufacturer :

Dinkle Enterprises

Termination Style :

Solder

Positions Per Level :

6

Series :

2EHDVC
