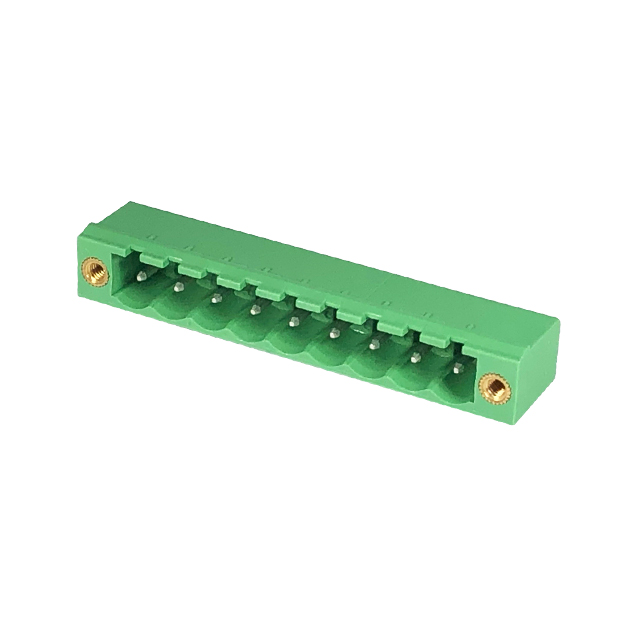

2EHDRM-09P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Mounting Type :

BOARD

Number of Levels :

1

Reach Compliance Code :

Compliant

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Pitch :

0.200 (5.08mm)

ECCN Code :

EAR99

Current - IEC :

18A

Wire Gauge or Range - mm² :

-

Product Status :

Active

Features :

Mating Flange

Plug Wire Entry :

-

Rated Voltage :

300 V

Positions Per Level :

9

Rated Current :

15 A

Contact Mating Finish :

Tin

Number of Ways :

9

Voltage - UL :

300 V

Number of Decks :

1

Voltage - IEC :

630 V

Header Orientation :

90°, Right Angle

Number of Rows :

1

Wire Gauge or Range - AWG :

-

Type :

Header, Male Pins, Shrouded (4 Side)

Number of Positions :

9

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Current - UL :

15 A

Color :

Green

Termination Style :

Solder

Fastening Method :

Connector

Operating Temperature :

-40°C ~ 120°C

Safety Approval :

CSA; CUL; FIMKO; UL; VDE
