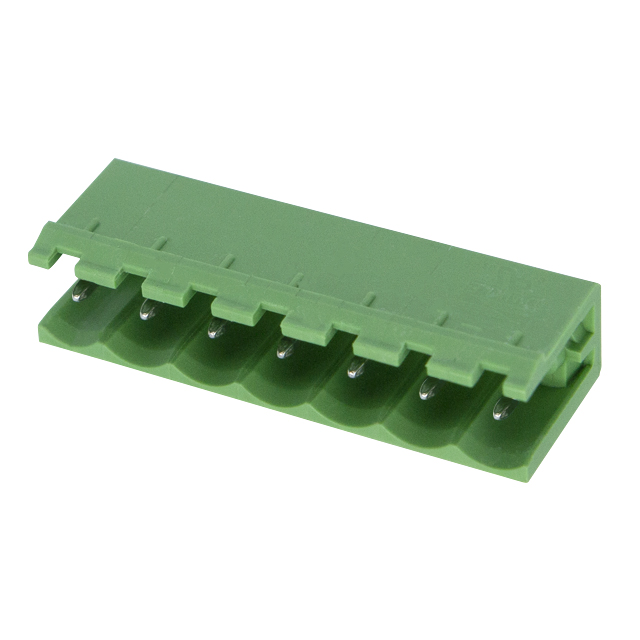

2EHDR-07P
Or copy the link below:
- Mfr.Part #
- 2EHDR-07P
- Manufacturer
- DINKLE Corporation USA
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7POS 5.08MM HDR
- Stock
- 525
- In Stock ：
- 525
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- DINKLE Corporation USA
- Product Category :
- Headers, Plugs and Sockets
- Product Status :
- Active
- Termination Style :
- Solder
- Current - UL :
- 15 A
- Number of Levels :
- 1
- Voltage - IEC :
- 630 V
- Color :
- Green
- Wire Gauge or Range - AWG :
- -
- Header Orientation :
- 90°, Right Angle
- Package :
- Bulk
- Series :
- 2EHDR
- Operating Temperature :
- -40°C ~ 120°C
- Mounting Type :
- Through Hole
- Positions Per Level :
- 7
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Number of Positions :
- 7
- Contact Mating Finish :
- Tin
- Current - IEC :
- 18A
- Features :
- -
- Plug Wire Entry :
- -
- Voltage - UL :
- 300 V
- Wire Gauge or Range - mm² :
- -
- Pitch :
- 0.200 (5.08mm)
- Datasheets
- 2EHDR-07P
0.200 (5.08mm) Green 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) 2EHDR Tin
2EHDR-07P Overview
Its mounting type is Through Hole.It is part of the 2EHDR Series of products.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (2 Side) products.
2EHDR-07P Features
2EHDR series
2EHDR-07P Applications
There are a lot of Dinkle
2EHDR-07P Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
