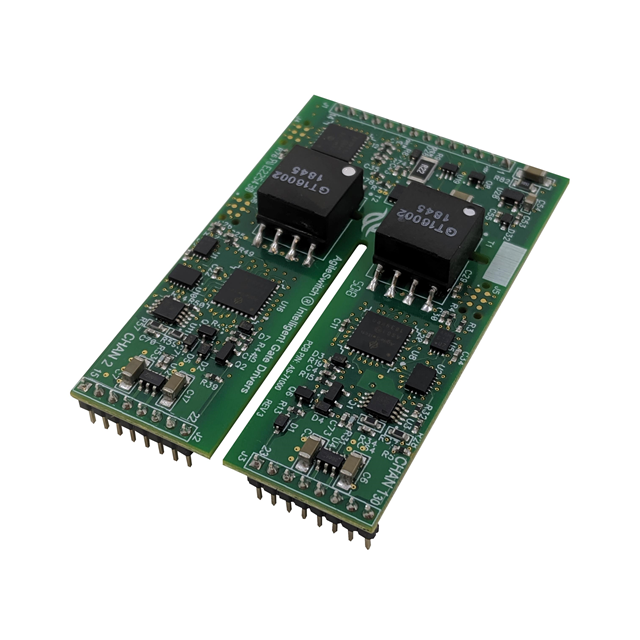

2ASC-12A1HP

Manufacturer :

Microchip Technology

Product Category :

Gate Drivers

Logic Voltage - VIL, VIH :

1.25V, 3.5V

Subcategory :

PMIC - Power Management ICs

Current - Peak Output (Source, Sink) :

10A, 10A

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Operating Supply Current :

250 mA

Output Voltage :

24 V

Width :

40 mm

Channel Type :

SYNCHRONOUS

Terminal Form :

THROUGH-HOLE

Technology :

SiC

Product Category :

Gate Drivers

Seated Height-Max :

10.1 mm

Package :

Bulk

Terminal Position :

Dual

Maximum Operating Temperature :

+ 85 C

Input Type :

Non-Inverting

Number of Functions :

1

Temperature Grade :

Industrial

Number of Drivers :

2 Driver

Brand :

Microchip Technology / Atmel

Product Type :

Gate Drivers

Rise Time :

80 ns

Output Current :

10 mA

Operating Temperature :

-40°C ~ 85°C (TA)

Manufacturer :

Microchip

Base Product Number :

2ASC-12

Mounting Type :

Through Hole

Configuration :

Inverting

Supplier Device Package :

Module

Voltage - Supply :

14V ~ 16V

Series :

AgileSwitch

Reach Compliance Code :

Unknown

Type :

High-Side, Low-Side

Gate Type :

P-Channel MOSFET

Supply Voltage-Max (Vsup) :

16 V

Rise / Fall Time (Typ) :

80ns, 90ns

Supply Voltage-Min (Vsup) :

14 V

Product Status :

Active

Driven Configuration :

Half-Bridge

Product :

MOSFET Gate Drivers

Driver Configuration :

High Side and Low Side

Package / Case :

Module

Length :

61 mm

JESD-30 Code :

R-XDMA-T30

Adjustable Threshold :

No

Number of Outputs :

2 Output

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Number of Channels :

2

Package Shape :

RECTANGULAR

For Use With :

Auxiliary Power Unit, Charging, Electric Vehicles, Storage and Inverter

Mounting Style :

Through Hole

Number of Terminals :

30

Surface Mount :

No
