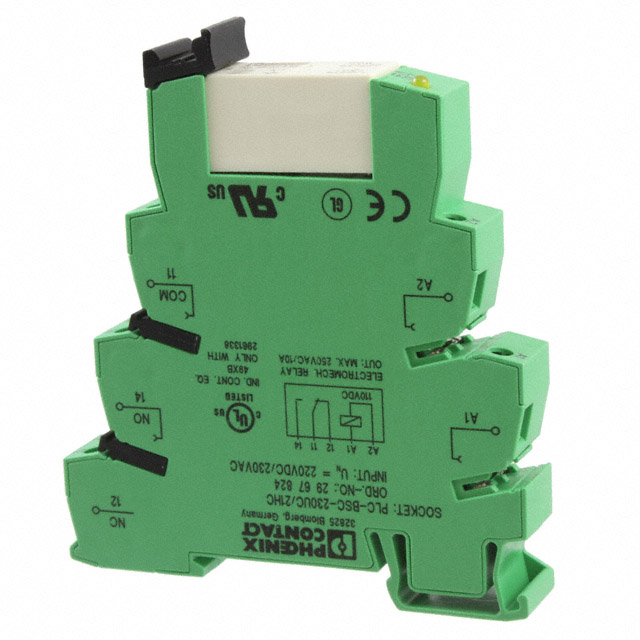

2967675

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Operate Time :

7ms

Max Voltage Rating (AC) :

250V

Number of Rows :

2

Contact Material :

Silver Nickel (AgNi)

Length :

94mm

Voltage - Rated AC :

250V

Height :

80mm

Safety Approval :

UL

Coil Type :

Non Latching

Number of Decks :

3

Max Voltage Rating (DC) :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Release Time :

10ms

Factory Lead Time :

4 Weeks

RoHS Status :

RoHS Compliant

Approval Agency :

UL

Packaging :

Bulk

Weight :

71.269992g

Coil Voltage (AC) :

230V

Coil Voltage :

230VAC/DC

ECCN Code :

EAR99

Series :

PLC-RSC

Wire Gauge :

12 AWG

Mounting Type :

DIN Rail

Switching Voltage :

250VAC 250VDC -Max

Operating Temperature :

-40°C~55°C

Number of Pins :

5

Max Current Rating :

10A

Termination :

Screw

Pbfree Code :

yes

Voltage - Rated DC :

250V

Mount :

DIN Rail

Contact Form :

SPDT (1 Form C)

Coil Current :

4.5mA

Published :

2009

Throw Configuration :

SPDT

Feature :

Lighted Indicator, Socket Included

Depth :

14mm

Package / Case :

Module

Width :

14mm

Coil Voltage (DC) :

220V

Relay Type :

GENERAL PURPOSE

Termination Style :

Screw Terminal

Current Rating :

10A
