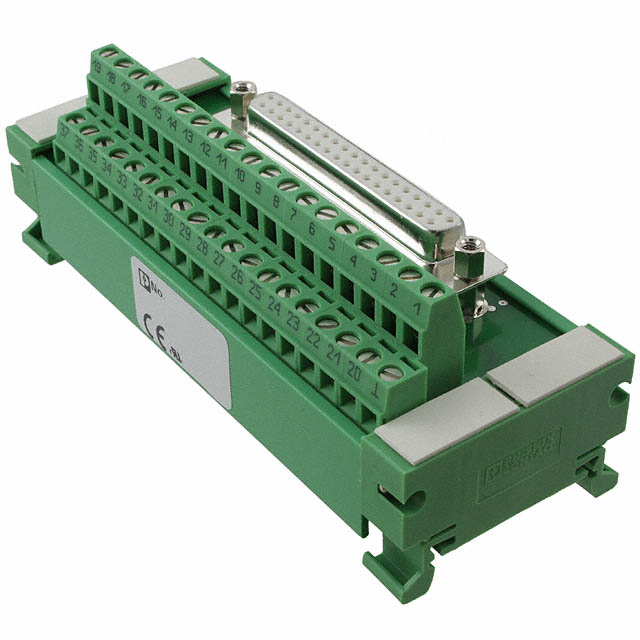

2962751

Manufacturer :

Phoenix Contact

Product Category :

Interface Modules

Min Operating Temperature :

-20°C

Wire/Cable Gauge :

16 AWG

Number of Contacts :

37

Operating Temperature :

-20°C~50°C

Current Rating :

2.5A

Lead Free :

Lead Free

Number of Positions :

37

Contact Current Rating :

2.5A

Positions / Poles :

37

Process Side Connection :

Terminal Blocks - Screw Connection

Termination :

Screw

Published :

2003

Current Rating (Per Contact) :

2.5A

RoHS Status :

RoHS Compliant

Wire Gauge (Max) :

26 AWG

Mount :

DIN Rail

Length :

4.764 121.01mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Green

Height :

42mm

Voltage - Rated :

125V

Width :

1.772 45.00mm

Number of Poles :

37

Gender :

FEMALE

Control Side Connection :

D-Sub, Female

Wire Gauge :

16-26 AWG

Packaging :

Bulk

Control Side Cable Retainer :

Jackscrew Socket

Weight :

106.069996g

Factory Lead Time :

4 Weeks

Number of Pins :

37

Connector Type :

D-Sub

Wire Gauge (Min) :

16 AWG

Max Operating Temperature :

50°C

Series :

VARIOFACE, UM

Material :

Polyamide

Package / Case :

Module

Depth :

45mm
