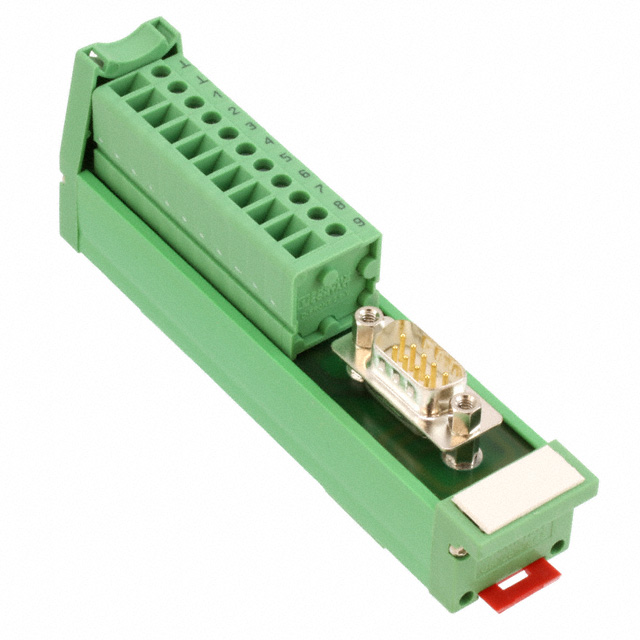

2959573

Manufacturer :

Phoenix Contact

Product Category :

Interface Modules

Orientation :

Straight

Operating Temperature :

-10°C~50°C

Wire Gauge (Max) :

24 AWG

Min Operating Temperature :

-10°C

Max Operating Temperature :

50°C

Current Rating :

2.5A

Positions / Poles :

9

Width :

4.606 116.99mm

Voltage - Rated :

125V

Weight :

76.609994g

Color :

Green

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge :

12-24 AWG

Control Side Cable Retainer :

Jackscrew Socket

Mount :

DIN Rail

Number of Positions :

9

Wire/Cable Gauge :

12 AWG

Height :

117mm

Number of Contacts :

9

Published :

2011

Process Side Connection :

Terminal Blocks - Screw Connection

RoHS Status :

RoHS Compliant

Current Rating (Per Contact) :

2.5A

Series :

VARIOFACE SLIM-LINE UM

Gender :

Male

Termination :

Screw

Factory Lead Time :

4 Weeks

Contact Current Rating :

2.5A

Length :

0.984 24.99mm

Connector Type :

D-Sub

Wire Gauge (Min) :

24 AWG

Control Side Connection :

D-Sub, Male

Voltage - Rated AC :

125V

Depth :

45mm

Package / Case :

Module
