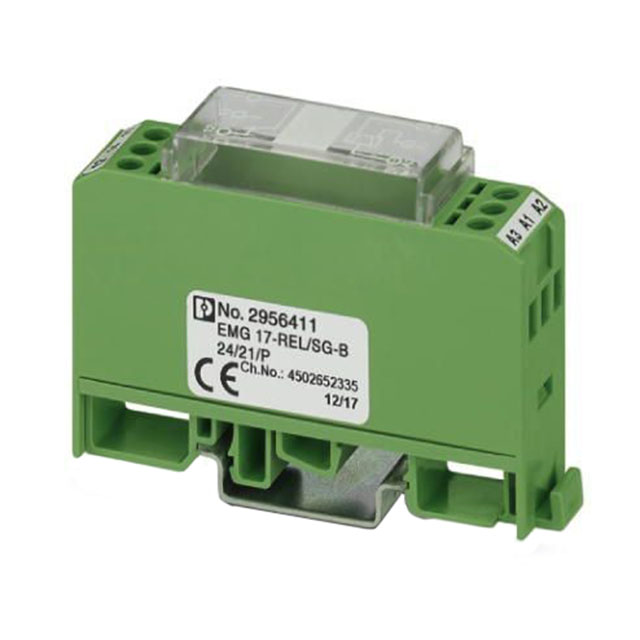

2956411

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Input Current :

8mA

Turn On Delay Time :

5 ms

Contact Current Rating :

5A

Min Operating Temperature :

-20°C

Height :

62.5mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

75mm

Current Rating :

6A

Max Voltage Rating (AC) :

250V

Termination :

Screw

RoHS Status :

RoHS Compliant

Width :

17.5mm

Factory Lead Time :

4 Weeks

Coil Resistance :

857.14Ohm

Turn-Off Delay Time :

5 ms

Max Input Voltage :

24V

Coil Voltage (AC) :

24V

Approval Agency :

EN

Package / Case :

Module

Coil Type :

Non-Latching

Max Current Rating :

5A

Max Voltage Rating (DC) :

250V

Depth :

62.5mm

Reach Compliance Code :

not_compliant

Max Operating Temperature :

50°C

Published :

2011

Contact Material :

Silver

Operate Time :

10 ms

Number of Pins :

6

Weight :

50.970005g

Coil Current :

28mA

Coil Voltage (DC) :

24V

Throw Configuration :

SPDT

Relay Type :

POWER/SIGNAL RELAY

Mount :

Chassis, DIN Rail

Voltage - Rated AC :

250V
