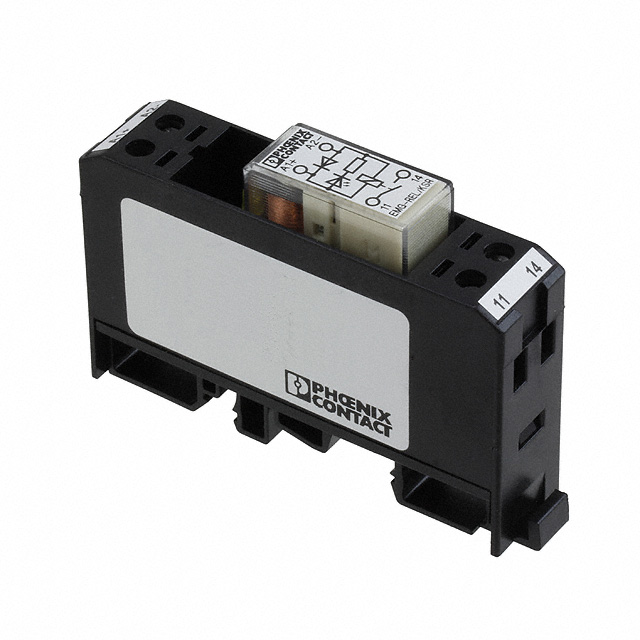

2949994
Or copy the link below:
- Mfr.Part #
- 2949994
- Manufacturer
- Phoenix Contact
- Package / Case
- Module
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 10A 24V
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Power Relays, Over 2 Amps
- Coil Power :
- 670mW
- Contact Voltage(AC)-Max :
- 250V
- Factory Lead Time :
- 4 Weeks
- Max Input Voltage :
- 24V
- Package / Case :
- Module
- Coil Type :
- Non Latching
- Length :
- 62.5mm
- Lead Free :
- Lead Free
- Switching Voltage :
- 250VAC -Max
- Mount :
- Chassis, DIN Rail
- Operating Temperature :
- -20°C~50°C
- Contact Material :
- Silver Cadmium Oxide (AgCdO)
- Termination :
- Screw
- Height :
- 75mm
- Contact Form :
- SPST-NO (1 Form A)
- Mounting Type :
- DIN Rail
- Reference Standard :
- EAC; EN; IEC
- Coil Voltage (DC) :
- 24V
- Coil Resistance :
- 857.14Ohm
- Operate Time :
- 13ms
- Feature :
- Diode, Lighted Indicator, Socket Included
- Packaging :
- Bulk
- Turn-Off Delay Time :
- 15 ms
- Relay Type :
- GENERAL PURPOSE
- Approval Agency :
- EN, cULus
- Published :
- 2010
- Width :
- 17.5mm
- Turn On Delay Time :
- 13 ms
- Input Current :
- 28mA
- Coil/Input Supply Type :
- DC
- Coil Current :
- 28mA
- Additional Feature :
- WITH LED, FREEWHEELING DIODE AND DAMPING DIODE
- Packing Method :
- Tube
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reach Compliance Code :
- not_compliant
- Termination Style :
- Screw Terminal
- Coil Voltage :
- 24VDC
- Weight :
- 53.789988g
- Depth :
- 62.5mm
- Relay Action :
- Momentary
- RoHS Status :
- RoHS Compliant
- Physical Dimension :
- 75mm x 17.5mm x 62.5mm
- Current Rating :
- 10A
- Throw Configuration :
- SPST
- Datasheets
- 2949994
2949994 datasheet pdf and Power Relays, Over 2 Amps product details from Phoenix Contact stock available at
