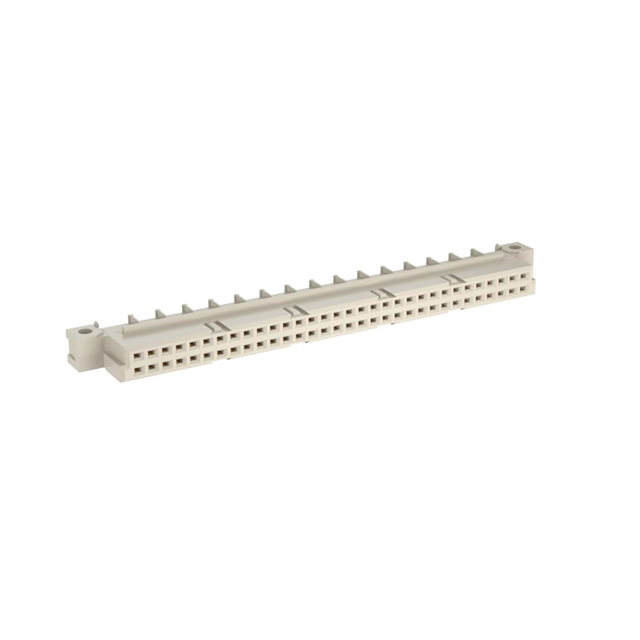

294721

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

IEC Conformance :

No

Body Orientation :

RIGHT ANGLE

Mounting Type :

BOARD

Reference Standard :

UL, CSA

MIL Conformance :

No

Mating Contact Row Spacing :

0.1 inch

PCB Contact Row Spacing :

2.54 mm

Filter Feature :

No

Dielectric Withstanding Voltage :

1400VAC V

Mixed Contacts :

No

ECCN Code :

EAR99

Contact Resistance Max :

8(mohm)

Body Breadth :

0.315 inch

Polarization Key :

POLARIZED HOUSING

Contact Plating :

Gold

Reliability :

COMMERCIAL

Type :

DIN 41612

Subcategory :

Headers and Edge Type Connectors

Product Length (mm) :

94(mm)

DIN Conformance :

yes

Mounting Option 1 :

LOCKING

Insulation Resistance :

10000000000 Ω

Body Depth :

0.608 inch

Additional Feature :

PANEL MOUNTABLE

Contact Style :

SQ PIN-SKT

Termination Method :

Solder

Terminal Pitch :

2.54 mm

HTS Code :

8536.69.40.40

Termination Type :

Solder

Mating Contact Pitch :

0.1 inch

Pitch (mm) :

2.54(mm)

Contact Resistance :

20 mΩ

Mounting Style :

Through Hole

Manufacturer :

ERNI

Rated Current (Signal) :

2 A

Reach Compliance Code :

Compliant

Insertion Force-Max :

.9174 N

Contact Gender :

FEMALE

Product Height (mm) :

8(mm)

Number Of PCB Rows :

2

Product Depth (mm) :

17.98(mm)

Number of Contact Rows :

2

Durability :

400 Cycles

Body/Shell Style :

PLUG

Gender :

F

Terminal Length :

0.118 inch

Option :

GENERAL PURPOSE

Total Number of Contacts :

64

Contact Material :

COPPER ALLOY

Connector Type :

BOARD EURO CONNECTOR

Name of Rows Loaded :

A,B

Current Rating (Max) :

2(A)

Operating Temp Range :

-55C to 125C

Number of Contacts :

64(POS)

PCB Contact Pattern :

RECTANGULAR
