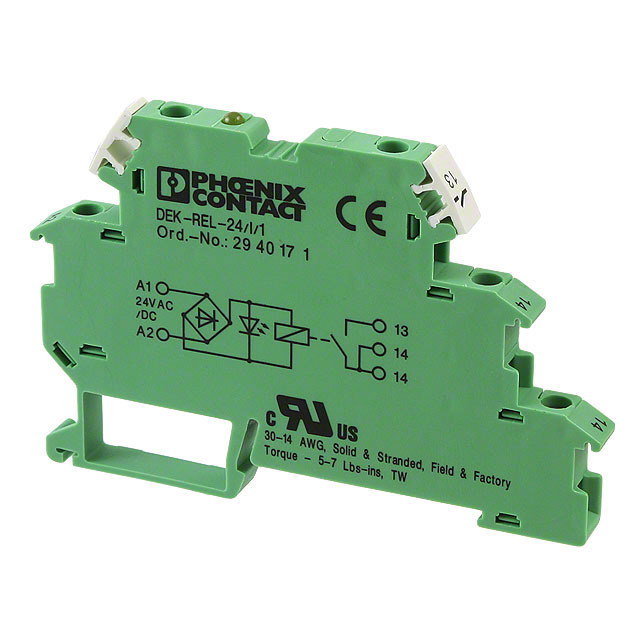

2940171

Manufacturer :

Phoenix Contact

Product Category :

Power Relays, Over 2 Amps

Weight :

28.349523g

Relay Type :

GENERAL PURPOSE

Number of Rows :

1

Current Rating :

5A

Coil Voltage :

24VAC/DC

Number of Decks :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-20°C~50°C

Coil Type :

Non Latching

Length :

80mm

Published :

2010

Depth :

6.2mm

Throw Configuration :

SPDT, SPST

Coil Voltage (AC) :

24V

Contact Form :

SPST-NO (1 Form A)

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Termination :

Screw

ECCN Code :

EAR99

Max Current Rating :

3A

Lead Free :

Lead Free

Mount :

DIN Rail

Safety Approval :

CUL; GOST; UL

Width :

6.2mm

Turn On Delay Time :

5 ms

Switching Voltage :

250VAC 250VDC -Max

Wire Gauge :

14 AWG

Input Current :

6.5mA

Pbfree Code :

yes

Contact Material :

Silver Nickel (AgNi)

Operate Time :

5ms

Coil Voltage (DC) :

24V

Max Voltage Rating (DC) :

125V

Termination Style :

Screw Terminal

Mounting Type :

DIN Rail

Power Consumption :

72W

Factory Lead Time :

4 Weeks

Max Input Voltage :

24V

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Height :

56mm

Number of Pins :

5

Contact Rating (Current) :

3A

Max Voltage Rating (AC) :

250V

Package / Case :

Module

Turn-Off Delay Time :

15 ms
