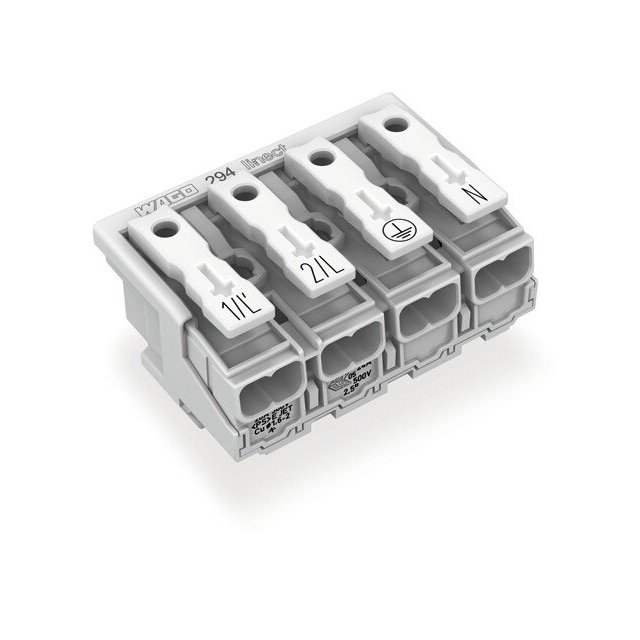

294-8024

Manufacturer :

WAGO

Product Category :

Solid State Lighting Connector Assemblies

Ingress Protection :

-

Number of Ports :

4

Contact Finish :

Tin

Package :

Bulk

Fastening Type :

-

Housing Color :

White

Height :

27.3

Connector Type :

Receptacle, Push-In and Insert

Depth :

22.4

Connectable conductor cross section multi-wired :

0.5 - 2.5

Inflammability class of insulation material according to with UL94 :

V2

Length :

27.3

Manufacturer part # :

294-8024

Operating Temperature :

85°C

Width :

40mm

Product Status :

Active

Color :

White

Content :

500pc(s)

Wire Gauge :

12-18 AWG

Wire Type :

Solid Wire;Stranded Wire

Style :

Board to Cable/Wire

Voltage Rating :

500V

Connectable conductor cross section solid-core :

0.5 - 2.5

Industrial packaging :

yes

Features :

-

Pitch :

-

Transparent :

No

Cross section (inflexible) (max.) :

2.5mm²

Manufacturer :

Wago

Termination :

Push and Insert

Housing Material :

Polycarbonate (PC)

Rated current In :

24

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 1.5

Nominal current - rounded value :

24A

Contact Material :

Electrolytic Copper

Series :

-

Mounting Type :

Panel Mount

AWG :

18 - 12

Mating Cycles :

-

Current Rating (Amps) :

24A

Nominal current :

24A

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Cross section (inflexible) (min.) :

0.5mm²

Number of Positions :

4

Connection :

Pull spring
