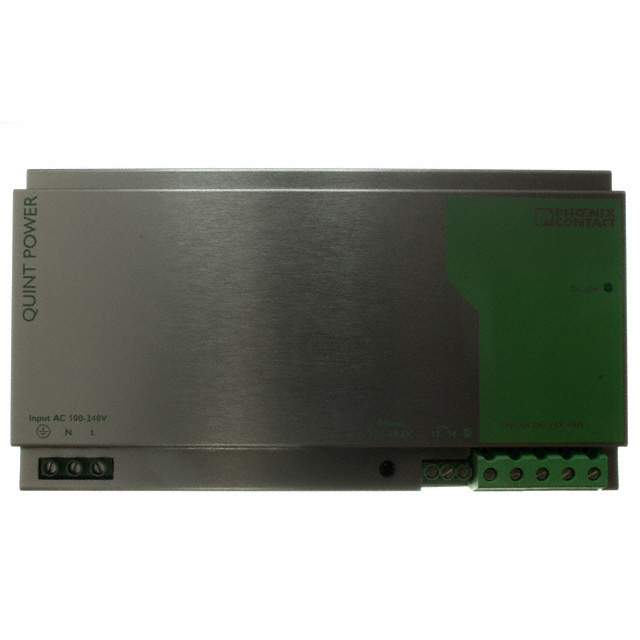

2938879

Manufacturer :

Phoenix Contact

Product Category :

Min Output Voltage :

22.5V

Depth :

130mm

Approval Agency :

CB, cULus, cURus

Width :

240.03mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Efficiency :

92%

Output Current :

40A

Max Operating Temperature :

70°C

Type :

Enclosed

Feature :

Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input

RoHS Status :

RoHS Compliant

Applications :

ITE (Commercial)

Min Operating Temperature :

-25°C

Current - Output 1 :

40A

Weight :

3.499919kg

Mounting Type :

DIN Rail

Power (Watts) :

960W

Mount :

DIN Rail

Voltage - Input :

110V~240VAC

Output Power :

960W

Number of Pins :

11

Max Output Current :

40A

Factory Lead Time :

7 Weeks

Max Output Voltage :

28.5V

Published :

2005

Voltage - Output 1 :

24V

Height :

130.048mm

Length :

124.968mm

Max Power Dissipation :

960W

Size / Dimension :

4.92Lx9.45W x 5.12 H 125.0mmx240.0mmx130.0mm

Lead Free :

Lead Free

Min Input Voltage :

85V

Voltage - Isolation :

4kV

Number of Outputs :

1

Operating Temperature :

-25°C~70°C With Derating

Current - Output (Max) :

40A

Series :

Quint

Max Input Voltage :

264V

Minimum Load Required :

No
