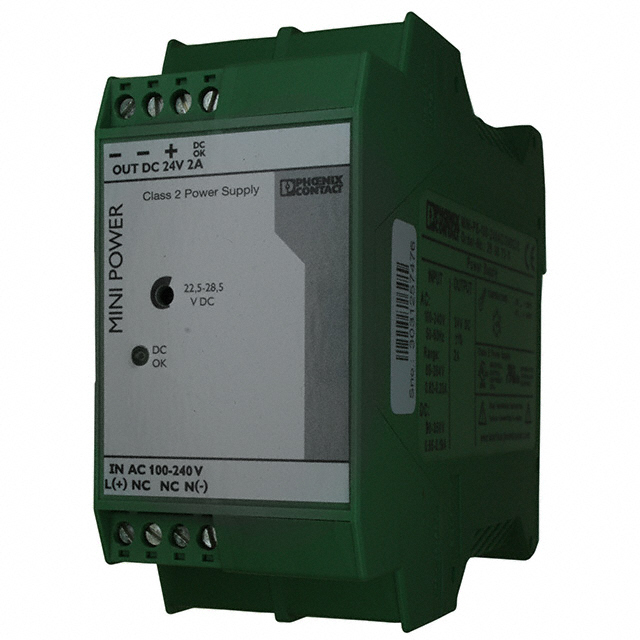

2938730

Manufacturer :

Phoenix Contact

Product Category :

Max Input Voltage :

264V

Min Output Voltage :

22.5V

Min Operating Temperature :

-25°C

Nominal Input Voltage (AC) :

240V

Output Voltage :

24V

Feature :

Adjustable Output, DC Input Capable, IP20, Load Sharing, Universal Input

Height :

99mm

Mount :

DIN Rail

Size / Dimension :

4.21Lx1.77W x 3.90 H 107.0mmx45.0mmx99.0mm

Min Input Voltage :

85V

Depth :

99mm

Voltage - Isolation :

4kV

Min Input Voltage (AC) :

85V

Max Power Dissipation :

48W

Max Output Current :

2A

Power (Watts) :

48W

Voltage - Input :

100V~240VAC

Type :

Enclosed

Output Current :

2A

Frequency :

65Hz

Min Input Voltage (DC) :

90V

Minimum Load Required :

No

Packaging :

Bulk

Series :

Quint

Approval Agency :

CB, cULus, cURus

Length :

114.5mm

Mounting Type :

DIN Rail

Current - Output (Max) :

2A

Lead Free :

Lead Free

Weight :

323.599998g

Max Input Voltage (DC) :

350V

Current Rating :

2A

Max Output Voltage :

28.5V

Moisture Sensitivity Level (MSL) :

Not Applicable

Applications :

ITE (Commercial)

RoHS Status :

RoHS Compliant

Factory Lead Time :

5 Weeks

Current - Output 1 :

2A

Voltage - Output 1 :

24V

Published :

2005

Output Power :

48W

Efficiency :

88%

Package / Case :

100

Number of Outputs :

1

Width :

45mm

Operating Temperature :

-25°C~70°C With Derating

Max Operating Temperature :

70°C

Max Voltage Rating (AC) :

264V
