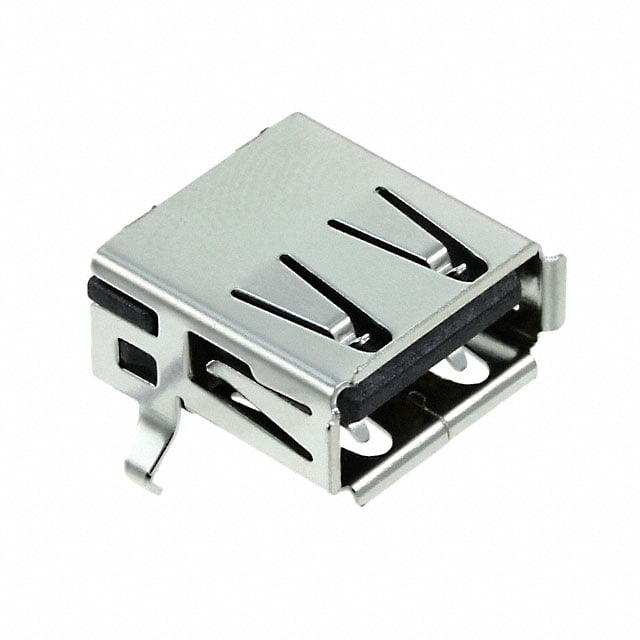

292303-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

USB, DVI, HDMI Connector Assemblies

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

JESD-609 Code :

e3

Pitch :

2.5mm

Orientation :

RIGHT ANGLE

RoHS Status :

RoHS Compliant

Circuit Application :

Signal

IEC Conformance :

No

Contact Material :

Copper

Specifications :

USB 2.0

Mounting Type :

Through Hole, Right Angle

Connector Type :

USB-A (USB TYPE-A)

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

14mm

Contact Plating :

Gold

Termination :

Solder

Mixed Contacts :

No

Radiation Hardening :

No

Current Rating :

1A

Number of Contacts :

4

Halogen Free :

Halogen Free

Mounting Feature :

Horizontal

Operating Temperature :

-55°C~85°C

Length :

14.63mm

Voltage - Rated :

30VAC

Dielectric Withstanding Voltage :

750VAC V

Packaging :

Tube

Empty Shell :

No

Current Rating (Amps) :

1A per Contact

Option :

GENERAL PURPOSE

Mount :

Horizontal, Through Hole

Shell Finish :

Tin

Feature :

Board Lock

PCB Thickness :

1.57mm

Reference Standard :

UL

Length - Tail :

2.84mm

Gender :

Receptacle

Number of Ports :

1

REACH SVHC :

No SVHC

Number of Conductors :

ONE

Published :

2004

Housing Material :

Thermoplastic

Insulation Color :

Black

Contact Current Rating :

1A

Shell/Shielding Material :

Steel, Stainless

Number Of PCB Rows :

1

Contact Finish :

Gold or Gold-Palladium

Reliability :

COMMERCIAL

Number of Pins :

2

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

Plating Thickness :

760 nm

USB :

USB 2.0

Withdrawl Force-Min :

9.7856 N

Factory Lead Time :

5 Weeks

DIN Conformance :

No

Contact Style :

USB, SER A FLAT

Mating Cycles :

1500

MIL Conformance :

No

Shielding :

Shielded

Plating :

Tin

Polarization Key :

POLARIZED HOUSING

Filter Feature :

No
