292228-9
Or copy the link below:
- Mfr.Part #
- 292228-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 9POS 1.5MM
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tape and Reel (TR)
- Dielectric Withstanding Voltage :
- 500VAC V
- Sealable :
- No
- Housing Color :
- Natural
- Current Rating :
- 2A
- MIL Conformance :
- No
- Height :
- 7.7mm
- Number of Positions :
- 9
- Series :
- Mini CT
- PCB Mount Alignment :
- Without
- ELV :
- Compliant
- Number of Rows :
- 1
- Number Of PCB Rows :
- 1
- Insulation Height :
- 0.193 4.90mm
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish Thickness - Mating :
- 1μm
- Style :
- Board to Cable/Wire
- Pbfree Code :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Retention :
- With
- Published :
- 2004
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Gender :
- Male
- Factory Lead Time :
- 25 Weeks
- DIN Conformance :
- No
- Contact Current Rating :
- 2A
- Voltage - Rated :
- 50VAC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Reliability :
- COMMERCIAL
- Insulation Color :
- Beige
- Length :
- 18.00098mm
- Total Number of Contacts :
- 9
- Mounting Type :
- Surface Mount, Right Angle
- Max Voltage Rating (AC) :
- 50V
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Number of Positions Loaded :
- All
- Approval Agency :
- CSA
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -30°C~105°C
- Insulation Diameter :
- 1.0414 mm
- Width :
- 4.8768mm
- Mount :
- Surface Mount
- Contact Length - Mating :
- 0.094 2.40mm
- Applications :
- GENERAL PURPOSE
- Feature :
- Solder Retention
- Fastening Type :
- Detent Lock
- Housing Material :
- Nylon
- Depth :
- 9.2mm
- Mixed Contacts :
- No
- PCB Thickness :
- 787.4μm
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Brass
- Filter Feature :
- No
- Mating Post Length :
- 2.4mm
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Contact Resistance :
- 30mOhm
- Pitch - Mating :
- 0.059 1.50mm
- Operating Supply Voltage :
- 50V
- Connector Type :
- Header
- Wire/Cable Gauge :
- 24 AWG
- Number of Conductors :
- ONE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 4 Wall
- Wire/Cable Type :
- Discrete
- Contact Shape :
- Square
- IEC Conformance :
- No
- Shape :
- RECTANGULAR
- Durability :
- 30 Cycles
- Datasheets
- 292228-9

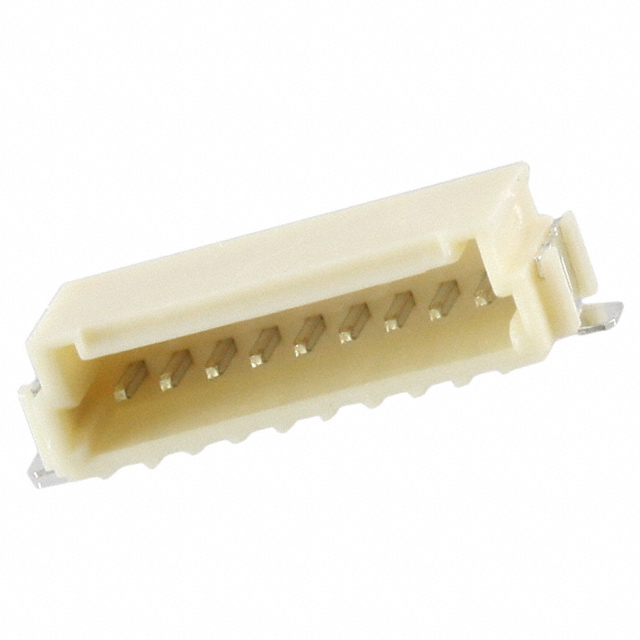

Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA6T), Nylon 6T, Glass Filled 9-Position Board to Cable/Wire 0.193 4.90mm Height
292228-9 Overview
A Header package is included with it.Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the Mini CT Series of products.It is possible for the device to be used for the application General Purpose.A number of features make it more powerful because of its Solder Retention feature.Surface Mount mounts the part.A voltage of 50V is required to operate this memory.There is no operating temperature for the device.
292228-9 Features
Mini CT series
292228-9 Applications
There are a lot of TE Connectivity AMP Connectors
292228-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
