292228-2
Or copy the link below:
- Mfr.Part #
- 292228-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS 1.5MM
- Stock
- 224
- In Stock ：
- 224
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Material :
- Brass
- Contact Shape :
- Square
- Published :
- 2004
- PCB Thickness :
- 787.4μm
- Connector Type :
- Header
- Operating Temperature :
- -30°C~105°C
- Termination :
- Solder
- Number of Positions :
- 2
- Mixed Contacts :
- No
- Series :
- Mini CT
- Max Voltage Rating (DC) :
- 50V
- Current Rating (Amps) :
- Varies by WireGAuge
- Polarization Key :
- POLARIZED HOUSING
- Sealable :
- No
- Number Of PCB Rows :
- 1
- Current Rating :
- 2A
- HTS Code :
- 8536.69.40.40
- Wire/Cable Gauge :
- 24 AWG
- Insulation Diameter :
- 1.0414 mm
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.059 1.50mm
- Durability :
- 30 Cycles
- Operating Supply Voltage :
- 50V
- Wire/Cable Type :
- Discrete
- Insulation Material :
- Polyamide (PA6T), Nylon 6T, Glass Filled
- Housing Color :
- Natural
- Orientation :
- RIGHT ANGLE
- ECCN Code :
- EAR99
- Insulation Height :
- 0.193 4.90mm
- Contact Length - Mating :
- 0.094 2.40mm
- Width :
- 4.8768mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Contact Resistance :
- 30mOhm
- IEC Conformance :
- No
- ELV :
- Compliant
- Lead Free :
- Lead Free
- Mount :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Max Voltage Rating (AC) :
- 50V
- Contact Current Rating :
- 2A
- Packaging :
- Tape and Reel (TR)
- Voltage - Rated :
- 50VAC
- Mating Post Length :
- 2.4mm
- Number of Conductors :
- ONE
- Mounting Type :
- Surface Mount, Right Angle
- Fastening Type :
- Detent Lock
- Contact Type :
- Male Pin
- Feature :
- Solder Retention
- Housing Material :
- Nylon
- Reliability :
- COMMERCIAL
- RoHS Status :
- RoHS Compliant
- Depth :
- 9.2mm
- PCB Mount Alignment :
- Without
- Applications :
- GENERAL PURPOSE
- Length :
- 7.5mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Flammability Rating :
- UL94 V-0
- Mating Contact Pitch :
- 0.059 inch
- Insulation Color :
- Beige
- Filter Feature :
- No
- Number of Rows :
- 1
- Mating Retention :
- With
- MIL Conformance :
- No
- Total Number of Contacts :
- 2
- Approval Agency :
- UL
- Plating Thickness :
- 39μin
- Shrouding :
- Shrouded - 4 Wall
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Gender :
- Male
- Shape :
- RECTANGULAR
- Factory Lead Time :
- 25 Weeks
- Height :
- 7.7mm
- Contact Finish Thickness - Mating :
- 1μm
- Datasheets
- 292228-2

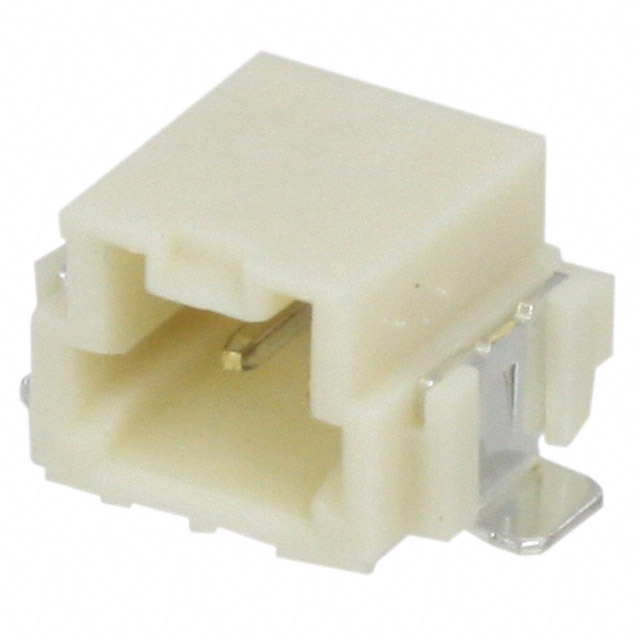

Mini CT Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA6T), Nylon 6T, Glass Filled 2-Position Board to Cable/Wire 0.193 4.90mm Height
