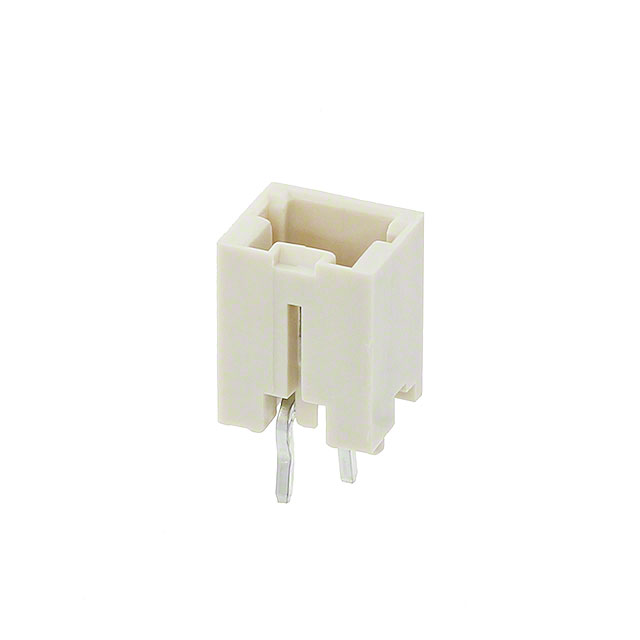

292207-2
Or copy the link below:
- Mfr.Part #
- 292207-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 1.5MM
- Stock
- 64,770
- In Stock ：
- 64,770
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.059 1.50mm
- HTS Code :
- 8536.69.40.40
- Packaging :
- Bulk
- PCB Thickness :
- 1.6002mm
- Overall Contact Length :
- 0.307 7.80mm
- Plating Thickness :
- 2μm
- PCB Contact Pattern :
- STAGGERED
- Durability :
- 30 Cycles
- Insulation Color :
- Gray
- Number of Positions :
- 2
- Contact Length - Post :
- 0.118 3.00mm
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Fastening Type :
- Detent Lock
- Contact Length - Mating :
- 0.094 2.40mm
- Color :
- Grey
- Contact Current Rating :
- 2A
- Number of Rows :
- 1
- Mating Contact Pitch :
- 0.059 inch
- Contact Material :
- Brass
- UL Flammability Code :
- 94V-0
- Feature :
- Board Guide
- Max Voltage Rating (AC) :
- 50V
- Sealable :
- No
- REACH SVHC :
- No SVHC
- ECCN Code :
- EAR99
- Number Of PCB Rows :
- 2
- Dielectric Withstanding Voltage :
- 500VAC V
- Series :
- Mini CT
- PCB Mount Retention :
- With
- Operating Temperature :
- -30°C~105°C
- Number of Conductors :
- ONE
- Factory Lead Time :
- 25 Weeks
- Applications :
- GENERAL PURPOSE
- Depth :
- 4.7mm
- Length :
- 5.4864mm
- Mixed Contacts :
- No
- Max Voltage Rating (DC) :
- 50V
- Mating Post Length :
- 2.4mm
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.272 6.91mm
- Housing Color :
- Natural
- Termination :
- Kinked Pin, Solder
- Orientation :
- Vertical
- Lead Free :
- Lead Free
- Height :
- 8.382mm
- Pbfree Code :
- yes
- Width :
- 4.7mm
- IEC Conformance :
- No
- Length - Tail :
- 3mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Current Rating :
- 2A
- Contact Finish - Mating :
- Tin
- Operating Supply Voltage :
- 50V
- Style :
- Board to Cable/Wire
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Shape :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Voltage - Rated :
- 50VAC
- ELV :
- Compliant
- Contact Gender :
- Male
- Published :
- 2004
- Polarization Key :
- POLARIZED HOUSING
- Approval Agency :
- UL
- DIN Conformance :
- No
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Nylon
- Datasheets
- 292207-2
Mini CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon, Glass Filled 2-Position Board to Cable/Wire 0.272 6.91mm Height
292207-2 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Mini CT Series.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 50V.It operates at an operating temperature of -30°C~105°C.
292207-2 Features
Mini CT series
292207-2 Applications
There are a lot of TE Connectivity AMP Connectors
292207-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
