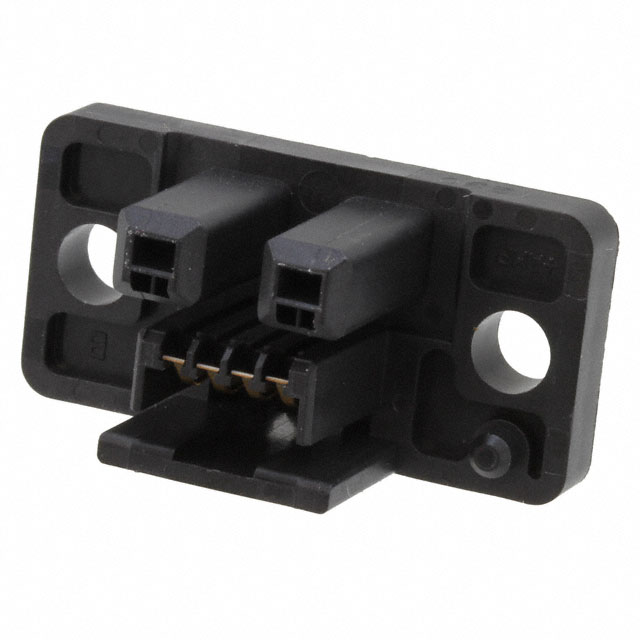

292184-1
Or copy the link below:
- Mfr.Part #
- 292184-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MINI-DRAWER 6P BLK
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Mating Retention :
- Without
- Number of Signal Positions :
- 4
- Operating Supply Voltage :
- 250V
- Number of Rows :
- 2
- Mounting Type :
- Panel Mount
- Length :
- 32.9946mm
- Termination :
- Crimp
- Lead Free :
- Not Applicable
- Connector Style :
- Mini-Drawer
- Insulation Diameter :
- 2.3876 mm
- Housing Material :
- Thermoplastic
- Color :
- Black
- Factory Lead Time :
- 15 Weeks
- RoHS Status :
- RoHS Compliant
- Insulation Resistance :
- 100MOhm
- Min Operating Temperature :
- -30°C
- Filter Feature :
- No
- Max Operating Temperature :
- 105°C
- Sealable :
- No
- Option :
- GENERAL PURPOSE
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- IEC Conformance :
- No
- MIL Conformance :
- No
- Packaging :
- Tray
- Wire/Cable Gauge :
- 16 AWG
- ELV :
- Compliant
- Pbfree Code :
- yes
- Contact Current Rating :
- 15A
- Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Note :
- Contacts Not Included
- DIN Conformance :
- No
- Published :
- 2009
- Flammability Rating :
- UL94 V-0
- Connector Usage :
- Receptacle
- Contact Material :
- COPPER ALLOY
- Mount :
- Panel
- Width :
- 18mm
- Number of Positions :
- 6 (4 + 2 Power)
- Contact Plating :
- Gold
- Height :
- 16.4mm
- Pitch :
- 2.0066mm
- Number of Contacts :
- 6
- Mixed Contacts :
- No
- Orientation :
- Straight
- Connector Type :
- Housing for Female Sockets
- Datasheets
- 292184-1
