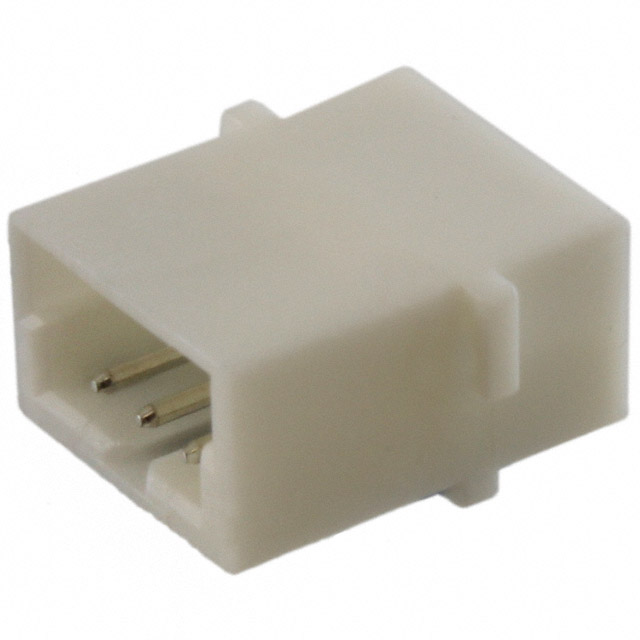

292156-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Adapters

Approval Agency :

UL

Orientation :

Vertical

Shape :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Mount :

Free Hanging, Panel

Reliability :

COMMERCIAL

Contact Current Rating :

4A

Height :

11.9888mm

JESD-609 Code :

e3

Depth :

12mm

Housing Material :

Nylon

Total Number of Contacts :

3

Wire Gauge (Min) :

30 AWG

Series :

CT

Min Operating Temperature :

-40°C

Wire/Cable Type :

Discrete

Convert From (Adapter End) :

Plug, Male Pins

Pbfree Code :

yes

Housing Color :

Natural, White

DIN Conformance :

No

Reference Standard :

UL

Contact Material :

Brass

Contact Style :

RND PIN-SKT

ELV :

Compliant

Number of Positions :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Male to Male

Wire/Cable Gauge :

22 AWG

UL Flammability Code :

94V-0

Contact Plating :

Tin

Width :

5.9944mm

IEC Conformance :

No

Current Rating :

4A

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

Wire Gauge (Max) :

22 AWG

Flammability Rating :

UL94 V-0

Factory Lead Time :

13 Weeks

Convert To (Adapter End) :

Plug, Male Pins

RoHS Status :

RoHS Compliant

Length :

9.8mm

Connector Type :

Header, Pin, Plug

Operating Supply Voltage :

125V

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Mating Post Length :

4.4958mm

Mixed Contacts :

No

Termination :

Through Hole

Radiation Hardening :

No

Option :

GENERAL PURPOSE

Filter Feature :

No

Lead Free :

Not Applicable

Rated Current (Signal) :

4A

Contact Gender :

Male

Voltage - Rated :

125V

Max Operating Temperature :

105°C

Published :

2005
