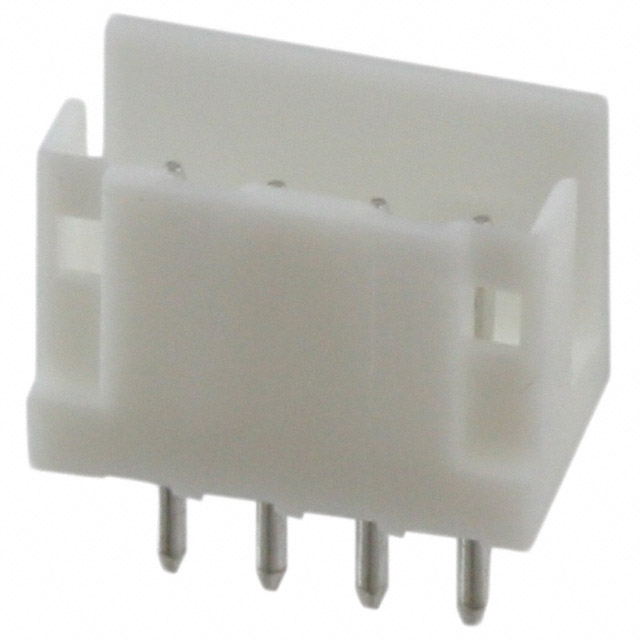

292133-4
Or copy the link below:
- Mfr.Part #
- 292133-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.079 2.00mm
- Wire/Cable Type :
- Discrete
- Current Rating (Amps) :
- Varies by WireGAuge
- Shrouding :
- Shrouded - 4 Wall
- Shape :
- RECTANGULAR
- Insulation Color :
- Natural
- Approval Agency :
- UL
- Contact Resistance :
- 20mOhm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Packaging :
- Bulk
- Contact Material :
- Brass
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Connector Type :
- Header
- Contact Current Rating :
- 4A
- Mating Post Length :
- 4.2mm
- Lead Free :
- Lead Free
- Fastening Type :
- Detent Lock
- Mating Retention :
- Without
- Height :
- 6.7818mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Housing Color :
- Natural
- Contact Length - Post :
- 0.126 3.20mm
- Operating Supply Voltage :
- 125V
- Contact Finish - Post :
- Tin
- PCB Thickness :
- 800μm
- Number of Positions Loaded :
- All
- Length - Tail :
- 3.2mm
- Applications :
- GENERAL PURPOSE
- Color :
- Natural
- Min Operating Temperature :
- -22°C
- Contact Type :
- Male Pin
- Factory Lead Time :
- 12 Weeks
- Sealable :
- No
- Max Voltage Rating (DC) :
- 125.125kV
- Contact Finish - Mating :
- Tin
- PCB Mount Retention :
- Without
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 4
- Contact Length - Mating :
- 0.165 4.20mm
- Termination :
- Solder
- Housing Material :
- Nylon
- PCB Mounting Orientation :
- Vertical
- Series :
- CT
- Pitch :
- 2mm
- Voltage - Rated :
- 125VAC
- PCB Mount Alignment :
- Without
- Contact Shape :
- Circular
- Number of Positions :
- 4
- Overall Contact Length :
- 0.358 9.09mm
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Mount :
- Through Hole
- Number of Rows :
- 1
- Plating :
- Tin
- Current Rating :
- 4A
- Material Flammability Rating :
- UL94 V-0
- Width :
- 5.8mm
- Depth :
- 5.8mm
- Max Voltage Rating (AC) :
- 125V
- Wire/Cable Gauge :
- 22 AWG
- Style :
- Board to Cable/Wire
- ELV :
- Compliant
- Insulation Height :
- 0.268 6.80mm
- Published :
- 2009
- Contact Plating :
- Tin
- Max Operating Temperature :
- 221°C
- Length :
- 9.8mm
- Datasheets
- 292133-4
CT Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.268 6.80mm Height
292133-4 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the CT Series.You should use it when it's below 221°C.A minimum temperature of -22°C is required for the operation of this device.A possible application for the device is General Purpose.Through Hole is used to mount the part.The operating supply voltage of this memory is 125V.
292133-4 Features
CT series
292133-4 Applications
There are a lot of TE Connectivity AMP Connectors
292133-4 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
