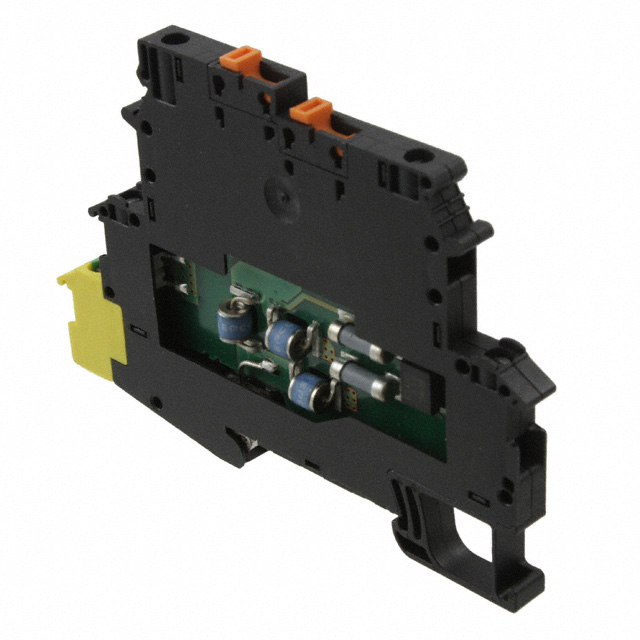

2920641

Manufacturer :

Phoenix Contact

Product Category :

Specialized

Ratings :

IP20

Height :

69.088mm

Color :

Black

Flammability Rating :

UL94 V-2

Termination Style :

Screw

Voltage - Rated :

24V

Housing Color :

Black

Terminal Width :

6.2mm

Current Rating :

300mA

Width :

6.2mm

Mounting Type :

DIN Rail

Number of Positions :

2

Length :

3.732 94.80mm

Type :

Surge Protection

Voltage - Rated AC :

1.429V

Series :

TRABTECH TT

Number of Levels :

2; Connected and Grounded

Wire Gauge (Max) :

24 AWG

Lead Free :

Lead Free

Approval Agency :

IEC, UL

Height (Max) :

2.720 69.10mm

Factory Lead Time :

5 Weeks

Wire Gauge (Min) :

14 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Published :

2009

Depth :

66.45mm

Mount :

DIN Rail, Screw

Number of Poles :

2

Wire Gauge or Range - mm² :

0.2-2.5mm2

Wire Gauge or Range - AWG :

14-24 AWG

Material Flammability Rating :

UL94 V-2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

80°C

Termination :

Screw

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-40°C

Weight :

33.899991g

Operating Temperature :

-40°C~80°C

Stripping Length :

8mm

Response Time :

1 ns
