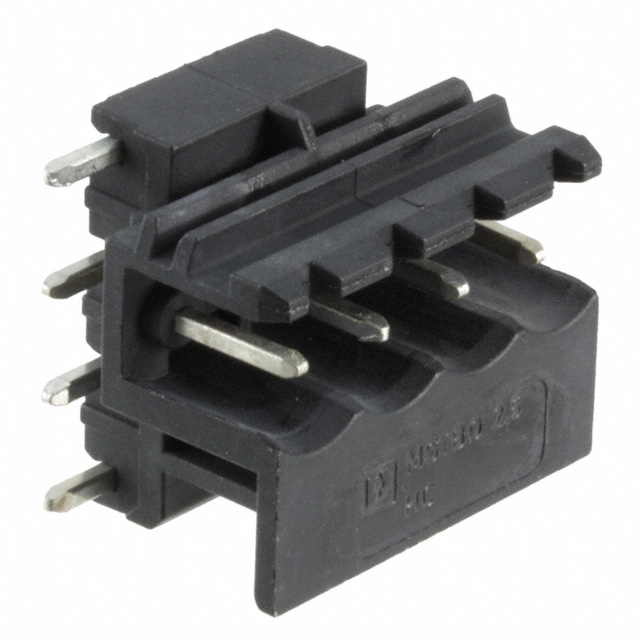

2909002
Or copy the link below:
- Mfr.Part #
- 2909002
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS 90DEG 5MM
- Stock
- 6,138
- In Stock ：
- 6,138
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Number of Decks :
- 1
- Header Orientation :
- 90°, Right Angle
- Weight :
- 2.679994g
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Lead Free :
- Lead Free
- Max Current Rating :
- 12A
- Pitch :
- 0.197 5.00mm
- Termination Style :
- Solder
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Safety Approval :
- UL; VDE; CSA
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Voltage :
- 300V
- Number of Levels :
- 1
- Color :
- Black
- Connector Type :
- PLUG
- Depth :
- 5mm
- Number of Positions Per Level :
- 4
- Insulation Height :
- 0.709 18.00mm
- Width :
- 19.95mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Number of Ways :
- 4
- Current :
- 12A
- Current Rating :
- 12A
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Published :
- 2011
- Packaging :
- Bulk
- Wire Gauge (Min) :
- 30 AWG
- Voltage - Rated :
- 250V
- Wire Gauge (Max) :
- 12 AWG
- Voltage - IEC :
- 400V
- Current - UL :
- 16A
- ECCN Code :
- EAR99
- Factory Lead Time :
- 7 Weeks
- Series :
- COMBICON MSTBO
- Height :
- 18mm
- Gender :
- Male
- Mount :
- Free Hanging, Through Hole
- Number of Rows :
- 1
- Length :
- 5mm
- Datasheets
- 2909002
2909002 Documents
Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MSTBO Polybutylene Terephthalate (PBT)
2909002 Overview
This product is packaged in a Plug box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON MSTBO Series.By Free Hanging, Through Hole, the part is mounted.It is a part that shares many benefits with other products from the Header, Male Pins, Shrouded (2 Side) line.
2909002 Features
COMBICON MSTBO series
2909002 Applications
There are a lot of Phoenix Contact
2909002 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
