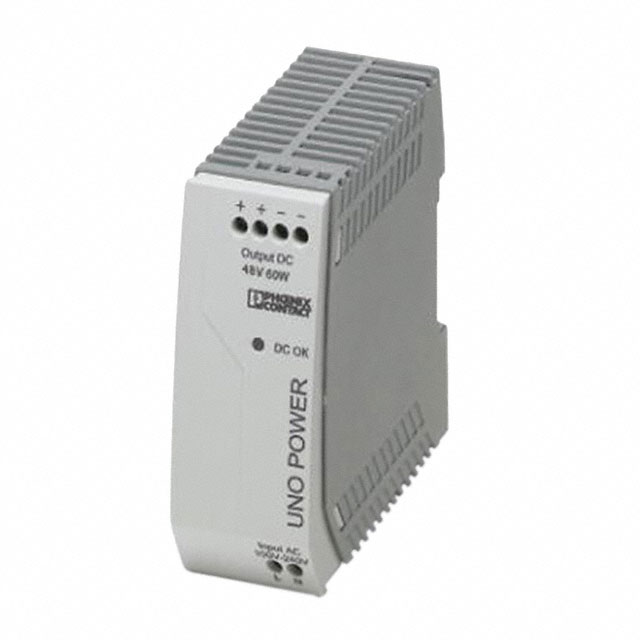

2902995

Manufacturer :

Phoenix Contact

Product Category :

Applications :

ITE (Commercial)

Max Voltage Rating (AC) :

264V

Mounting Type :

DIN Rail

Voltage - Output 1 :

48V

Min Input Voltage (AC) :

85V

Series :

UNO

Min Output Voltage :

48V

Length :

84mm

Efficiency :

90%

Type :

Enclosed

Operating Temperature :

-25°C~70°C With Derating

Current - Output (Max) :

1.25A

Max Operating Temperature :

70°C

Max Output Voltage :

48V

Feature :

IP20, Universal Input

Width :

35mm

Max Output Current :

1A

Output Current :

1.25A

Current - Output 1 :

1.25A

Height :

89.916mm

Power (Watts) :

60W

Voltage - Input :

85V~264VAC

Output Power :

60W

Size / Dimension :

3.31Lx1.38W x 3.54 H 84.0mmx35.0mmx90.0mm

Weight :

210g

Max Power Dissipation :

48W

Min Input Voltage :

85V

Approval Agency :

CB, cUL, cULus, cUR, cURus, UL, UR

Voltage - Isolation :

4kV

Number of Outputs :

1

Max Output Power :

60W

RoHS Status :

RoHS Compliant

Factory Lead Time :

4 Weeks

Max Input Voltage :

264V

Moisture Sensitivity Level (MSL) :

Not Applicable

Depth :

90mm

Mount :

DIN Rail

REACH SVHC :

Unknown

Published :

2014

Min Operating Temperature :

-25°C
