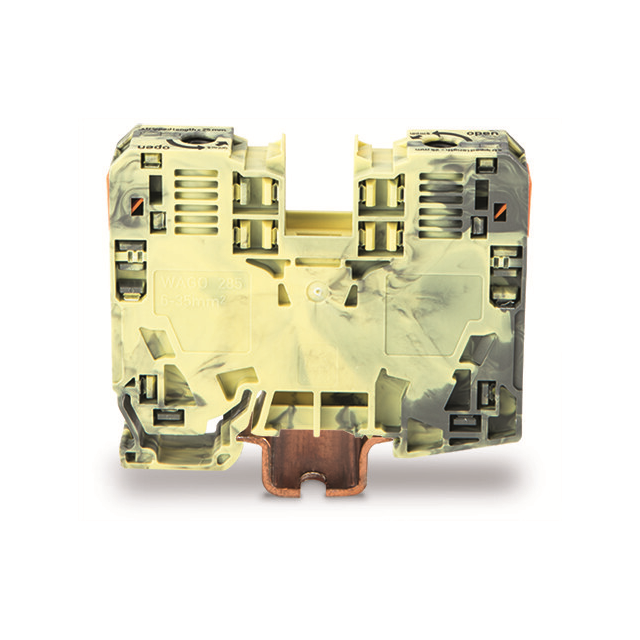

285-131

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Width :

16

Note :

n/a

Mounting :

DIN Rail

Voltage - IEC :

1000V

Product Status :

Active

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section solid-core :

6 - 35

Rated current In :

125

RoHS :

yes

Minimum Operating Temperature (°C) :

-60

Termination Method :

Spring Clamp

Features :

-

Voltage - UL :

600V

Depth :

63

Stripping Length :

25mm

Series :

WINSTA MINI

Package :

Box

Color :

Gray, Yellow

Maximum Current Rating (A) :

125

Number of Circuits :

1

Inflammability class of insulation material according to with UL94 :

V0

Approvals :

CSA, UR

Maximum Voltage Rating :

1000V

Number of Contacts :

2

Mounting Type :

DIN Rail

Number of Positions :

2

Disconnect Type :

-

Shell Size :

-

HTS :

8536.90.40.00

Manufacturer :

Wago

Shell Material :

PA

Maximum Operating Temperature (°C) :

105

Height :

86

Wire Gauge or Range - mm² :

0.08-2.5mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Termination Style :

Push In, Spring

Connectable conductor cross section multi-wired :

6 - 35

Wire Gauge or Range - AWG :

2-8 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

6 - 35

ECCN (US) :

EAR99

Number of Positions/Contacts :

5

Number of Levels :

1

Number of Rows :

2

Type :

Feed-Through Terminal Block

Fuse Type :

-

PPAP :

No

Length :

86

Connectable conductor cross section fine-strand without cable end sleeve :

6 - 35

EU RoHS :

Compliant

Terminal - Width :

16.0mm

Current - UL :

115 A

Current - IEC :

125 A

Gender :

Female/Male

Automotive :

No
