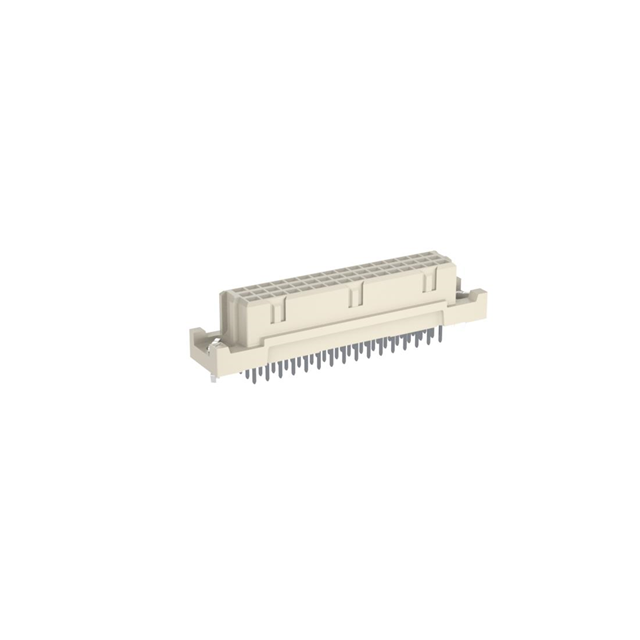

284944

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

Body Breadth :

0.417 inch

Mounting Option 1 :

LOCKING

Mating Contact Row Spacing :

0.1 inch

Insulation Resistance :

10000000000 Ω

Gender :

F

Subcategory :

Headers and Edge Type Connectors

Connector Type :

BOARD EURO CONNECTOR

Filter Feature :

No

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

Reach Compliance Code :

Compliant

Name of Rows Loaded :

A,B,C

Mounting Type :

BOARD

Body Orientation :

Straight

Contact Resistance Max :

15(mohm)

Contact Material :

COPPER ALLOY

Contact Gender :

FEMALE

Product Height (mm) :

11.6(mm)

Contact Resistance :

20 mΩ

Current Rating (Max) :

5.5(A)

MIL Conformance :

No

Product Length (mm) :

55(mm)

Manufacturer :

ERNI

Contact Plating :

Gold

Number of Contact Rows :

3

Termination Type :

Solder

Total Number of Contacts :

48

Termination Method :

Solder

Mixed Contacts :

No

Body Depth :

0.457 inch

Product Depth (mm) :

10.6(mm)

Mounting Style :

Through Hole

Additional Feature :

PANEL MOUNTABLE

Reference Standard :

UL, CSA

Type :

DIN 41612

HTS Code :

8536.69.40.40

Number of Contacts :

48(POS)

PCB Contact Row Spacing :

2.54 mm

DIN Conformance :

yes

IEC Conformance :

No

ECCN Code :

EAR99

Terminal Length :

0.157 inch

Terminal Pitch :

2.54 mm

Durability :

400 Cycles

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Rated Current (Signal) :

2 A

Operating Temp Range :

-55C to 125C

Body/Shell Style :

PLUG

Polarization Key :

POLARIZED HOUSING

Dielectric Withstanding Voltage :

1400VAC V

Insertion Force-Max :

.9174 N

Number Of PCB Rows :

3

Mating Contact Pitch :

0.1 inch

Pitch (mm) :

2.54(mm)

Reliability :

COMMERCIAL
