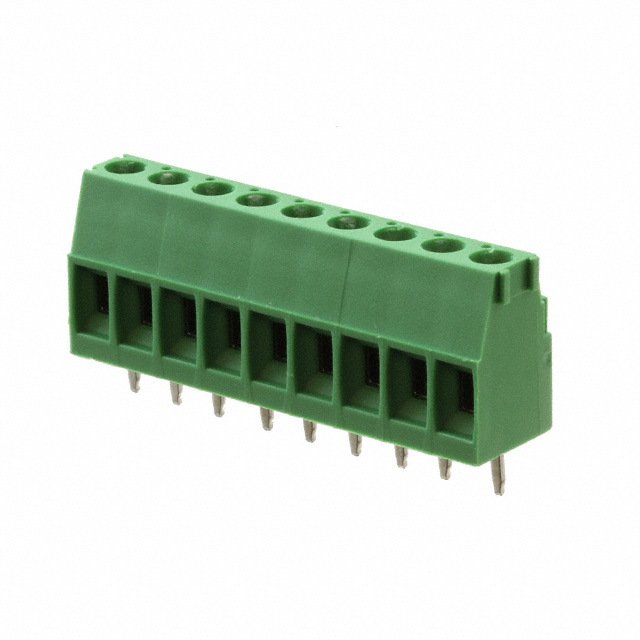

284392-9
Or copy the link below:
- Mfr.Part #
- 284392-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENT 3.81MM PCB
- Stock
- 600
- In Stock ：
- 600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Radiation Hardening :
- No
- Wire Gauge (Max) :
- 30 AWG
- Max Current Rating :
- 12A
- Factory Lead Time :
- 12 Weeks
- Connector Type :
- Receptacle
- Mount :
- Through Hole
- Contact Material - Plating :
- Brass - Tin Plated
- Number of Levels :
- 1
- Pitch :
- 0.150 3.81mm
- ELV :
- Compliant
- Min Operating Temperature :
- -40°C
- Contact Plating :
- Tin
- Number of Decks :
- 1
- Number of Ways :
- 9
- Mating Orientation :
- Horizontal with Board
- Max Supply Voltage (AC) :
- 300V
- Color :
- Green
- Wire Termination :
- Screw - Rising Cage Clamp
- Depth :
- 8.2mm
- Series :
- Buchanan
- Orientation :
- Straight
- Length - Tail :
- 3.5mm
- Number of Rows :
- 1
- Safety Approval :
- UL
- Current Rating :
- 12A
- Length :
- 30.98mm
- Contact Material :
- Brass
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Screw Material - Plating :
- Brass - Nickel Plated
- Feature :
- Interlocking (Side)
- Voltage - Rated :
- 300V
- Wire Gauge :
- 14-30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Screw Thread :
- M3
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Published :
- 2002
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 105°C
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Min) :
- 14 AWG
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Packaging :
- Tray
- Number of Contacts :
- 9
- Datasheets
- 284392-9
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan
284392-9 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Buchanan Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
284392-9 Features
Buchanan series
284392-9 Applications
There are a lot of TE Connectivity AMP Connectors
284392-9 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
