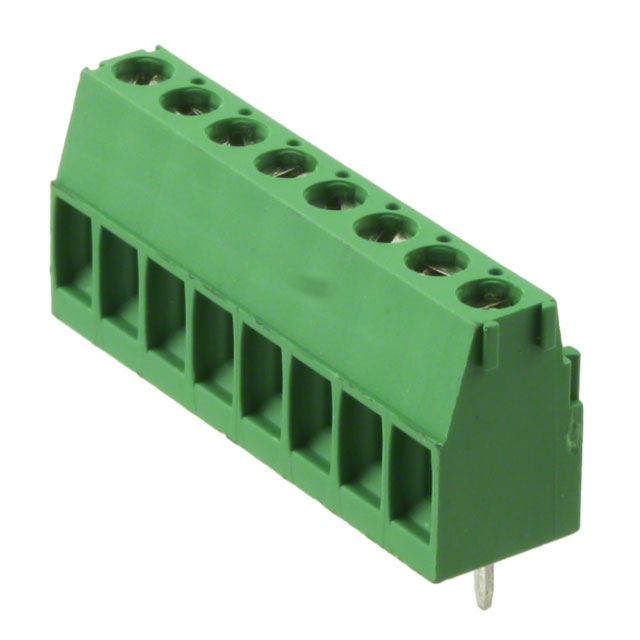

284392-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Safety Approval :

UL

Wire Gauge :

14-30 AWG

Number of Ways :

8

Contact Material :

Brass

Mating Orientation :

Horizontal with Board

Min Operating Temperature :

-40°C

Termination :

Solder

Factory Lead Time :

12 Weeks

Length - Tail :

3.5mm

Max Current Rating :

12A

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Wire Gauge (Max) :

30 AWG

Connector Type :

Receptacle

Feature :

Interlocking (Side)

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Max Supply Voltage (AC) :

300V

Published :

2007

Pitch :

0.150 3.81mm

Screw Thread :

M3

Flammability Rating :

UL94 V-0

ELV :

Compliant

Mount :

Through Hole

Number of Rows :

1

Contact Plating :

Tin

Material :

Polyamide

Voltage - Rated :

300V

Contact Material - Plating :

Brass - Tin Plated

Wire Termination :

Screw - Rising Cage Clamp

Length :

27.17mm

Radiation Hardening :

No

Number of Decks :

1

Color :

Green

Series :

Buchanan

Max Voltage Rating (AC) :

300V

Depth :

8.2mm

Clamp Material - Plating :

Brass - Nickel Plated

ECCN Code :

EAR99

Packaging :

Tray

Housing Material :

Polyamide (PA66), Nylon 6/6

Torque - Screw :

0.25 Nm (2.2 Lb-In)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Min) :

14 AWG

Number of Contacts :

8

Number of Levels :

1

Max Operating Temperature :

105°C

Orientation :

Straight

Screw Material - Plating :

Brass - Nickel Plated

RoHS Status :

RoHS Compliant

Mounting Type :

Through Hole
