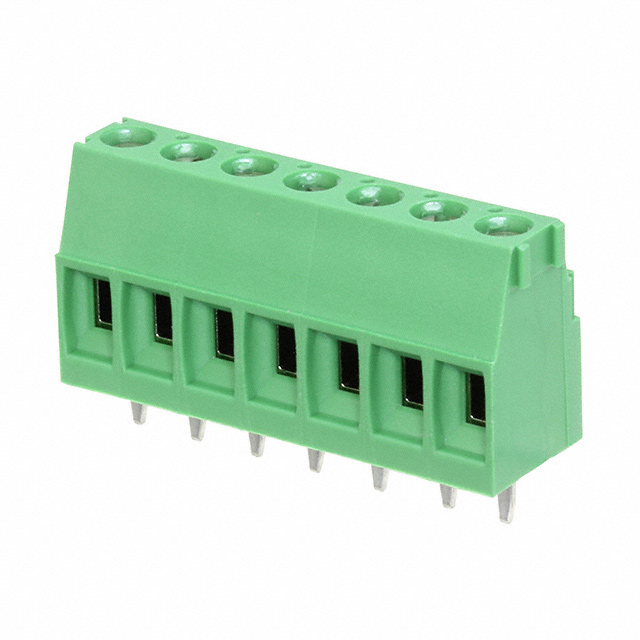

284392-7
Or copy the link below:
- Mfr.Part #
- 284392-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7P SIDE ENT 3.81MM PCB
- Stock
- 375
- In Stock ：
- 375
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Mounting Type :
- Through Hole
- Published :
- 2007
- Number of Decks :
- 1
- Factory Lead Time :
- 12 Weeks
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Pitch :
- 0.150 3.81mm
- Orientation :
- Straight
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Number of Ways :
- 7
- Max Current Rating :
- 12A
- Feature :
- Interlocking (Side)
- Contact Plating :
- Tin
- ELV :
- Compliant
- Color :
- Green
- Voltage - Rated :
- 300V
- Contact Material - Plating :
- Brass - Tin Plated
- Connector Type :
- Receptacle
- Wire Termination :
- Screw - Rising Cage Clamp
- Clamp Material - Plating :
- Brass - Nickel Plated
- HTS Code :
- 8536.69.40.40
- Number of Contacts :
- 7
- Radiation Hardening :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Safety Approval :
- UL
- ECCN Code :
- EAR99
- Number of Levels :
- 1
- Screw Thread :
- M3
- Contact Material :
- Brass
- Screw Material - Plating :
- Brass - Nickel Plated
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- Mount :
- Through Hole
- Wire Gauge (Max) :
- 30 AWG
- Wire Gauge (Min) :
- 30 AWG
- Current Rating :
- 12A
- Termination :
- Screw
- Packaging :
- Tray
- Length - Tail :
- 3.5mm
- Wire Gauge :
- 14-30 AWG
- Mating Orientation :
- Horizontal with Board
- Series :
- Buchanan
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 284392-7
0.150 3.81mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan
284392-7 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
284392-7 Features
Buchanan series
284392-7 Applications
There are a lot of TE Connectivity AMP Connectors
284392-7 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
