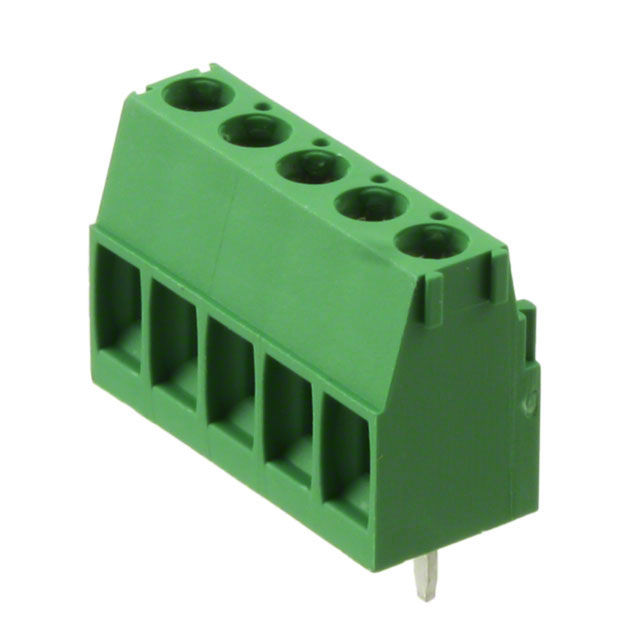

284392-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Screw Thread :

M3

Torque - Screw :

0.25 Nm (2.2 Lb-In)

Number of Levels :

1

Flammability Rating :

UL94 V-0

Published :

2007

RoHS Status :

RoHS Compliant

Packaging :

Tray

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Length - Tail :

3.5mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Orientation :

Straight

Mount :

Through Hole

Contact Material - Plating :

Brass - Tin Plated

Factory Lead Time :

12 Weeks

Number of Decks :

1

Max Voltage Rating (AC) :

300V

Wire Gauge :

14-30 AWG

Color :

Green

Radiation Hardening :

No

Safety Approval :

UL

Series :

Buchanan

Depth :

8.2mm

Mating Orientation :

Horizontal with Board

Screw Material - Plating :

Brass - Nickel Plated

Max Current Rating :

12A

Max Supply Voltage (AC) :

300V

Pitch :

0.150 3.81mm

Voltage - Rated :

300V

Max Operating Temperature :

105°C

Wire Termination :

Screw - Rising Cage Clamp

Connector Type :

Receptacle

Clamp Material - Plating :

Brass - Nickel Plated

Termination :

Solder

Min Operating Temperature :

-40°C

Length :

19.55mm

Current Rating :

12A

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Mounting Type :

Through Hole

Contact Material :

Brass

Number of Ways :

25

Contact Plating :

Tin

Wire Gauge (Min) :

30 AWG

Number of Contacts :

5

Number of Rows :

1

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

30 AWG

Feature :

Interlocking (Side)
