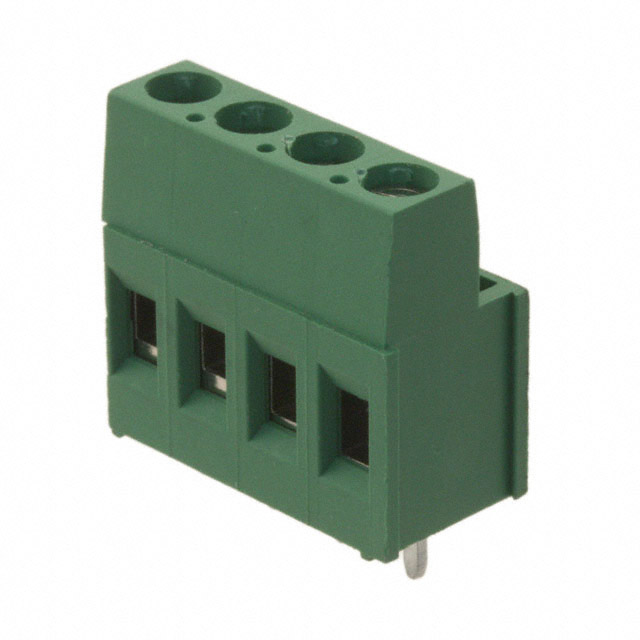

284392-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Brand Name :

Buchanan

Termination Method :

Solder

Contact Plating :

Tin

Base/Housing Material :

Polyamide 66

Housing Material :

Polyamide 6/6

Mounting Style :

Through Hole

Factory Lead Time :

13 Weeks

Rated Current :

12 A

Number of Positions :

4 Position

Voltage Rating :

300 V

Brand :

TE Connectivity

Current Rating :

12 A

Current Rating (Max) :

12/Contact(A)

Connection Method :

Screw Clamp

Wire Cross Section :

1.5 mm2

Number of Ways :

4

Safety Approval :

UL

Fastening Method :

Screw

Product Depth (mm) :

8.2(mm)

Product Category :

Fixed Terminal Blocks

Rated Voltage :

300 V

Operating Temp Range :

-40C to 105C

Number of Rows :

1

Contact Material :

Brass

Rad Hardened :

No

Product Type :

Fixed Terminal Blocks

Number of Contact Rows :

1

Body Orientation :

Straight

Number of Decks :

1

Wire Gauge :

14 AWG

Mounting Angle :

Horizontal

HTS Code :

8536.69.40.40

Product Length :

15.74 mm

Additional Feature :

BUCHANAN, POLYAMIDE66, 94V-0

Operating Temperature :

-40 to 105 °C

Subcategory :

Terminal Blocks

Type :

Terminal Block

Mounting :

Through Hole

Packaging :

Box

Product Length (mm) :

15.74(mm)

Contact Pitch (mm) :

3.81(mm)

Product Height (mm) :

12.6(mm)

ECCN Code :

EAR99

Reach Compliance Code :

not_compliant

Gender :

HDR

Product :

Fixed Terminal Blocks

Pitch :

3.8100 mm

Flammability Rating :

UL 94 V-0

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Termination Style :

Solder Pin

Operating Voltage (Max) :

300VAC

Number of Contacts :

4(POS)

Housing Color :

Green

RoHS :

Details

Mounting Type :

BOARD
