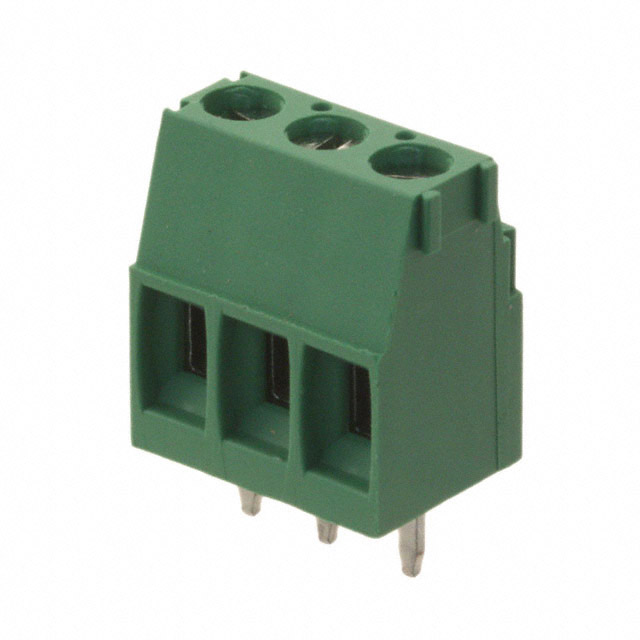

284392-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Number of Contacts :

3

Mounting Type :

Through Hole

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Screw Thread :

M3

Min Operating Temperature :

-40°C

ECCN Code :

EAR99

Safety Approval :

UL

Connector Type :

Receptacle

Contact Plating :

Tin

Voltage - Rated :

300V

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Max Voltage Rating (AC) :

300V

Number of Ways :

3

Published :

2002

Screw Material - Plating :

Brass - Nickel Plated

Number of Decks :

1

Wire Gauge :

14-30 AWG

Length :

11.93mm

Orientation :

Straight

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Mount :

Through Hole

Clamp Material - Plating :

Brass - Nickel Plated

Pitch :

0.150 3.81mm

Max Current Rating :

12A

ELV :

Compliant

Number of Levels :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Color :

Green

Max Operating Temperature :

105°C

Depth :

8.2mm

Max Supply Voltage (AC) :

300V

Contact Material - Plating :

Brass - Tin Plated

Flammability Rating :

UL94 V-0

Number of Rows :

1

Wire Gauge (Min) :

14 AWG

Feature :

Interlocking (Side)

Torque - Screw :

0.25 Nm (2.2 Lb-In)

Wire Gauge (Max) :

30 AWG

Factory Lead Time :

12 Weeks

Mating Orientation :

Horizontal with Board

Packaging :

Tray

Current Rating :

12A

Wire Termination :

Screw - Rising Cage Clamp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Manufacturer Package Identifier :

PTH_TERM3

Termination :

Solder

Series :

Buchanan

Contact Material :

Brass

Length - Tail :

3.5mm
