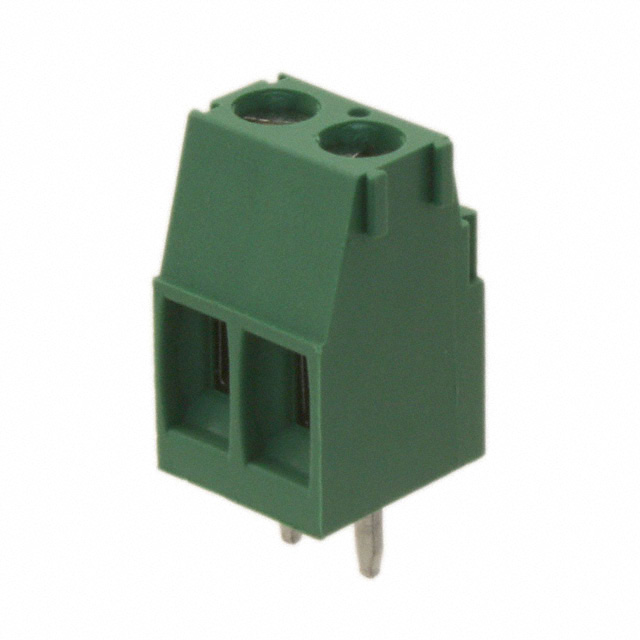

284392-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Mating Orientation :

Horizontal with Board

Contact Plating :

Tin

Max Voltage Rating (AC) :

300V

Torque - Screw :

0.25 Nm (2.2 Lb-In)

Length :

8.12mm

Max Supply Voltage (AC) :

300V

Screw Material - Plating :

Brass - Nickel Plated

Feature :

Interlocking (Side)

Wire Gauge (Max) :

30 AWG

Wire Termination :

Screw - Rising Cage Clamp

Shrouding :

yes

Number of Levels :

1

Wire Gauge :

14-30 AWG

Termination :

Solder

Factory Lead Time :

12 Weeks

Number of Decks :

1

Connector Type :

Receptacle

Voltage - Rated :

300V

Number of Contacts :

2

Max Operating Temperature :

105°C

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Lead Free :

Lead Free

Color :

Green

Number of Rows :

1

Max Current Rating :

12A

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Gauge (Min) :

14 AWG

Series :

Buchanan

Pitch :

0.150 3.81mm

Mounting Type :

Through Hole

Mount :

Through Hole

Screw Thread :

M3

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Clamp Material - Plating :

Brass - Nickel Plated

Contact Material :

Brass

HTS Code :

8536.69.40.40

Min Operating Temperature :

-40°C

Flammability Rating :

UL94 V-0

Current Rating :

12A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Safety Approval :

UL

Packaging :

Tray

ECCN Code :

EAR99

ELV :

Compliant

RoHS Status :

RoHS Compliant

Orientation :

Straight

Published :

2007

Length - Tail :

3.5mm

Number of Ways :

2

Contact Material - Plating :

Brass - Tin Plated

Radiation Hardening :

No

Depth :

8.2mm
