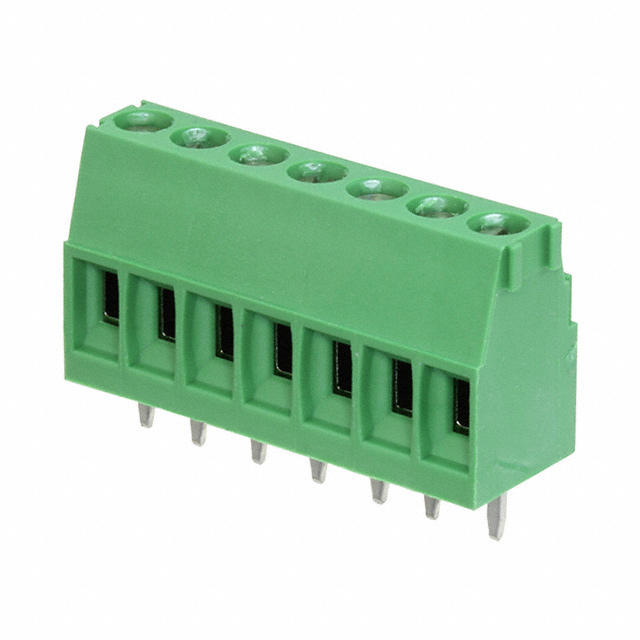

284391-7
Or copy the link below:
- Mfr.Part #
- 284391-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7POS SIDE ENT 3.5MM PCB
- Stock
- 613
- In Stock ：
- 613
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Gauge (Max) :
- 30 AWG
- Feature :
- Interlocking (Side)
- ECCN Code :
- EAR99
- Shrouding :
- yes
- Termination :
- Screw
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 7
- Connector Type :
- Receptacle
- Flammability Rating :
- UL94 V-0
- Number of Decks :
- 1
- HTS Code :
- 8536.69.40.40
- Wire Gauge (Min) :
- 14 AWG
- Number of Levels :
- 1
- Thread Size :
- M2
- Published :
- 2007
- Series :
- Buchanan
- Voltage - Rated :
- 300V
- Wire Termination :
- Screw - Rising Cage Clamp
- Clamp Material - Plating :
- Brass - Nickel Plated
- Mating Orientation :
- Horizontal with Board
- Max Current Rating :
- 12A
- Screw Thread :
- M3
- ELV :
- Compliant
- Mount :
- Through Hole
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Orientation :
- Straight
- Safety Approval :
- UL
- Contact Material - Plating :
- Brass - Tin Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Length - Tail :
- 3.5mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- Contact Material :
- Brass
- Current Rating :
- 12A
- Radiation Hardening :
- No
- Contact Plating :
- Tin
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Number of Ways :
- 7
- Color :
- Green
- Pitch :
- 0.138 3.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Screw Material - Plating :
- Brass - Nickel Plated
- Wire Gauge :
- 14-30 AWG
- Datasheets
- 284391-7
0.138 3.50mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan
284391-7 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Buchanan Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.
284391-7 Features
Buchanan series
284391-7 Applications
There are a lot of TE Connectivity AMP Connectors
284391-7 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
