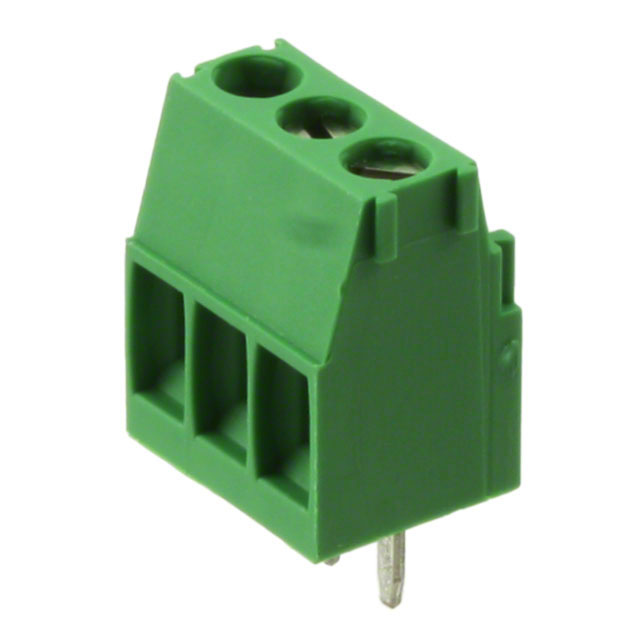

284391-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Mating Orientation :

Horizontal with Board

Shrouding :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Published :

2007

Color :

Green

Screw Thread :

M3

Current Rating :

12A

ECCN Code :

EAR99

Thread Size :

M2

Orientation :

Straight

Depth :

8.2mm

Max Supply Voltage (AC) :

300V

Contact Material - Plating :

Brass - Tin Plated

Mount :

Through Hole

Wire Gauge (Max) :

30 AWG

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Levels :

1

Max Current Rating :

12A

Max Operating Temperature :

105°C

Feature :

Interlocking (Side)

Number of Contacts :

3

Contact Material :

Brass

ELV :

Compliant

Voltage - Rated :

300V

Safety Approval :

UL

Connector Type :

Receptacle

Screw Material - Plating :

Brass - Nickel Plated

Clamp Material - Plating :

Brass - Nickel Plated

Number of Decks :

1

RoHS Status :

RoHS Compliant

Pitch :

0.138 3.50mm

Number of Ways :

3

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Wire Gauge (Min) :

14 AWG

Torque - Screw :

0.25 Nm (2.2 Lb-In)

Length :

11mm

Mounting Type :

Through Hole

Wire Termination :

Screw - Rising Cage Clamp

Flammability Rating :

UL94 V-0

Length - Tail :

3.5mm

Contact Plating :

Tin

Wire Gauge :

14-30 AWG

Number of Rows :

1

Max Voltage Rating (AC) :

300V

Packaging :

Tray

Factory Lead Time :

12 Weeks

Series :

Buchanan

Min Operating Temperature :

-40°C

Termination :

Solder

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK
