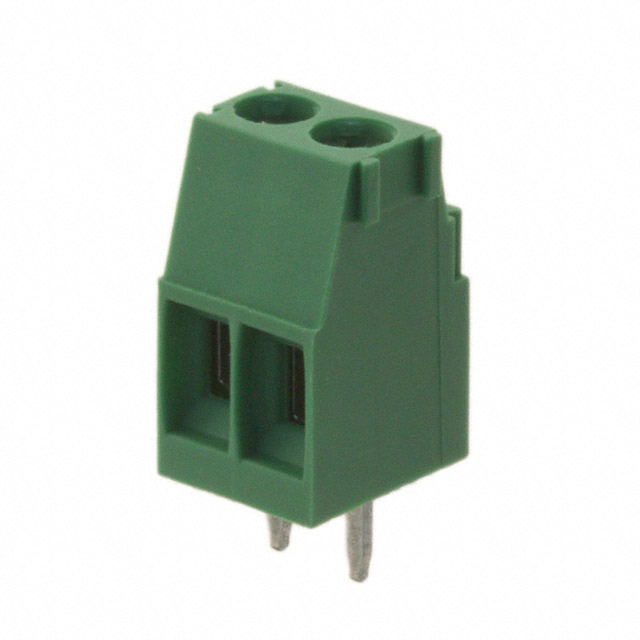

284391-2
Or copy the link below:
- Mfr.Part #
- 284391-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENT 3.5MM PCB
- Stock
- 12,712
- In Stock ：
- 12,712
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Number of Positions :
- 2
- Factory Lead Time :
- 21 Weeks
- Color :
- Green
- Feature :
- Interlocking (Side)
- Wire Gauge :
- 14-30 AWG
- Mounting Type :
- Through Hole
- Number of Decks :
- 1
- Safety Approval :
- UL
- Torque - Screw :
- 0.25 Nm (2.2 Lb-In)
- RoHS Status :
- RoHS Compliant
- Series :
- Buchanan
- Screw Thread :
- M3
- Contact Plating :
- Tin
- Shrouding :
- yes
- Wire Termination :
- Screw - Rising Cage Clamp
- Packaging :
- Tray
- Screw Material - Plating :
- Brass - Nickel Plated
- Pitch :
- 0.138 3.50mm
- Published :
- 2007
- Contact Material - Plating :
- Brass - Tin Plated
- Mating Orientation :
- Horizontal with Board
- ECCN Code :
- EAR99
- Number of Levels :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Reach Compliance Code :
- not_compliant
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Rows :
- 1
- HTS Code :
- 8536.69.40.40
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Clamp Material - Plating :
- Brass - Nickel Plated
- Max Current Rating :
- 12A
- Contact Material :
- Brass
- Voltage - Rated :
- 300V
- Number of Ways :
- 2
- Positions Per Level :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 284391-2
0.138 3.50mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG Buchanan
284391-2 Overview
The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.
284391-2 Features
Buchanan series
284391-2 Applications
There are a lot of TE Connectivity AMP Connectors
284391-2 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
