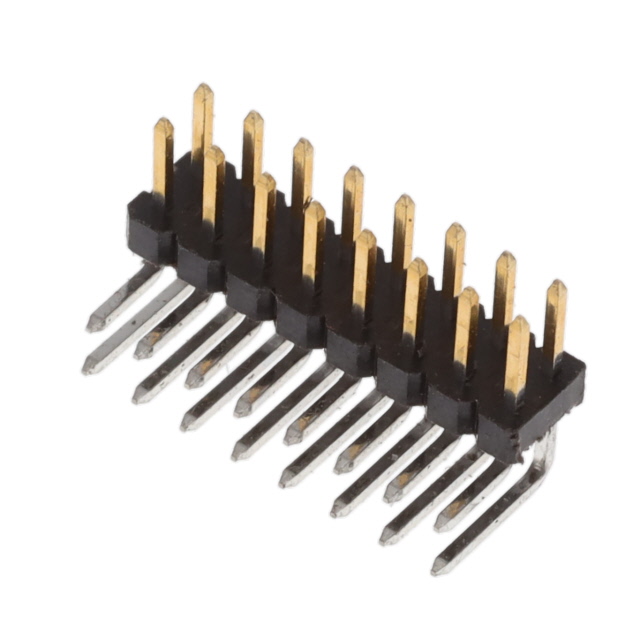

2842163-8
Or copy the link below:
- Mfr.Part #
- 2842163-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 16P,2MM,BRK HDR,DRRT,2.8,0.38AU,
- Stock
- 1,196
- In Stock ：
- 1,196
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Thermoplastic
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Header, Breakaway
- Operating Temperature :
- -40°C~125°C
- Series :
- AMPMODU
- Contact Material :
- COPPER ALLOY
- Contact Length - Mating :
- 0.157 4.00mm
- Number of Rows :
- 2
- Termination :
- Solder
- Insulation Color :
- Black
- Pitch - Mating :
- 0.079 2.00mm
- Factory Lead Time :
- 12 Weeks
- Contact Finish - Post :
- Tin
- Number of Positions :
- 16
- Style :
- Board to Board
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Shape :
- Square
- Packaging :
- Bulk
- Current Rating (Amps) :
- 2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Voltage - Rated :
- 125VAC/DC
- Shrouding :
- Unshrouded
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Length - Post :
- 0.110 2.79mm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.059 1.50mm
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Gold
- Datasheets
- 2842163-8
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 16-Position Board to Board 0.059 1.50mm Height
2842163-8 Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the AMPMODU Series, it belongs to the range of products of that series.-40°C~125°C Operating Temperature is the default operating temperature for the device.
2842163-8 Features
AMPMODU series
2842163-8 Applications
There are a lot of TE Connectivity AMP Connectors
2842163-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
