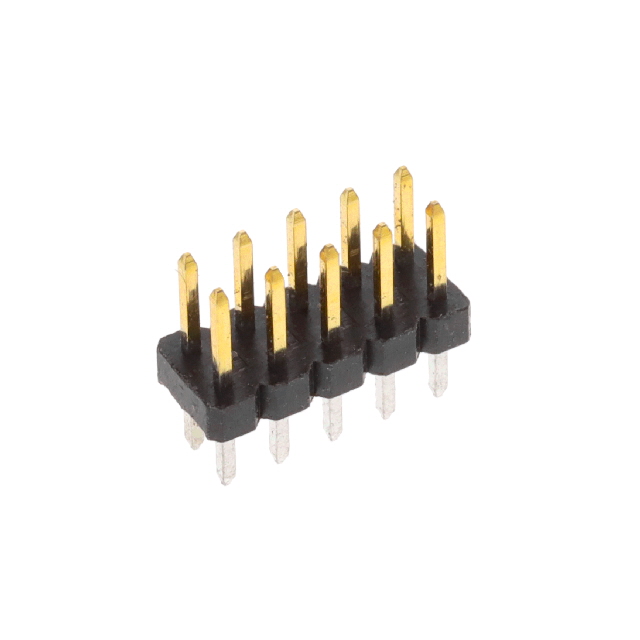

2842132-5
Or copy the link below:
- Mfr.Part #
- 2842132-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 10P,2MM,BRK HDR,DRVT,2.8,0.76AU,
- Stock
- 19
- In Stock ：
- 19
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 12 Weeks
- Contact Length - Mating :
- 0.157 4.00mm
- Contact Finish - Mating :
- Gold
- Style :
- Board to Board
- Number of Positions Loaded :
- All
- Shrouding :
- Unshrouded
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated :
- 125VAC/DC
- Contact Finish - Post :
- Tin
- Feature :
- Pick and Place
- Current Rating (Amps) :
- 2A
- Packaging :
- Bulk
- Number of Positions :
- 10
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~125°C
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Contact Length - Post :
- 0.110 2.79mm
- Insulation Height :
- 0.059 1.50mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Overall Contact Length :
- 0.327 8.30mm
- Contact Shape :
- Square
- Insulation Material :
- Thermoplastic
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Color :
- Black
- Series :
- AMPMODU
- Contact Type :
- Male Pin
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header, Breakaway
- Datasheets
- 2842132-5
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 10-Position Board to Board 0.059 1.50mm Height
2842132-5 Overview
Packaging is in the form of Header, Breakaway.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Series.Several benefits come from the Pick and Place feature.Devices operate at -40°C~125°C operating temperatures.
2842132-5 Features
AMPMODU series
2842132-5 Applications
There are a lot of TE Connectivity AMP Connectors
2842132-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
