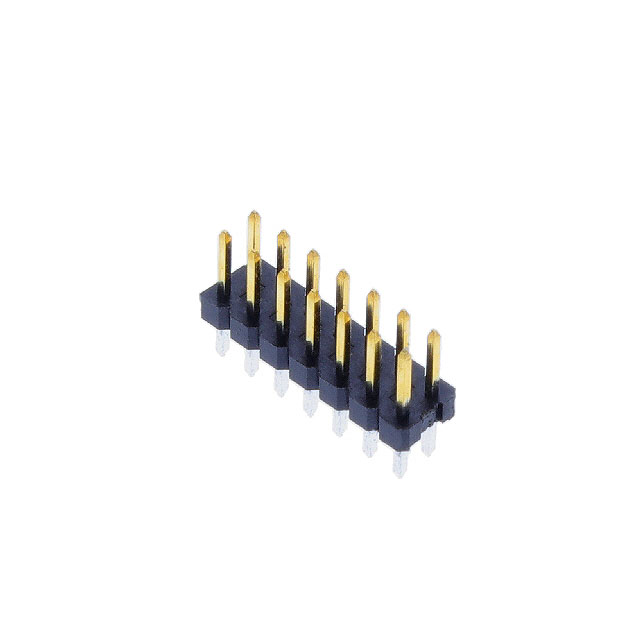

2842128-7
Or copy the link below:
- Mfr.Part #
- 2842128-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 14P,2MM,BRK HDR,DRVT,2.8,0.76AU,
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Overall Contact Length :
- 0.327 8.30mm
- Insulation Material :
- Thermoplastic
- Contact Length - Mating :
- 0.157 4.00mm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Factory Lead Time :
- 12 Weeks
- Series :
- AMPMODU
- Contact Material :
- COPPER ALLOY
- Contact Shape :
- Square
- Insulation Height :
- 0.059 1.50mm
- Voltage - Rated :
- 125VAC/DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~125°C
- Pitch - Mating :
- 0.079 2.00mm
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 14
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 2A
- Connector Type :
- Header, Breakaway
- Style :
- Board to Board
- Fastening Type :
- Push-Pull
- Shrouding :
- Unshrouded
- Number of Rows :
- 2
- Termination :
- Solder
- Contact Length - Post :
- 0.110 2.79mm
- Contact Finish - Post :
- Tin
- Datasheets
- 2842128-7
AMPMODU Series 2-Row Header, Breakaway Solder Copper Alloy Through Hole Gold Thermoplastic 14-Position Board to Board 0.059 1.50mm Height
2842128-7 Overview
Currently, it is packaged in Header, Breakaway.The mounting type of the device is Through Hole.A product of the AMPMODU Series, it belongs to the range of products of that series.-40°C~125°C Operating Temperature is the default operating temperature for the device.
2842128-7 Features
AMPMODU series
2842128-7 Applications
There are a lot of TE Connectivity AMP Connectors
2842128-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
