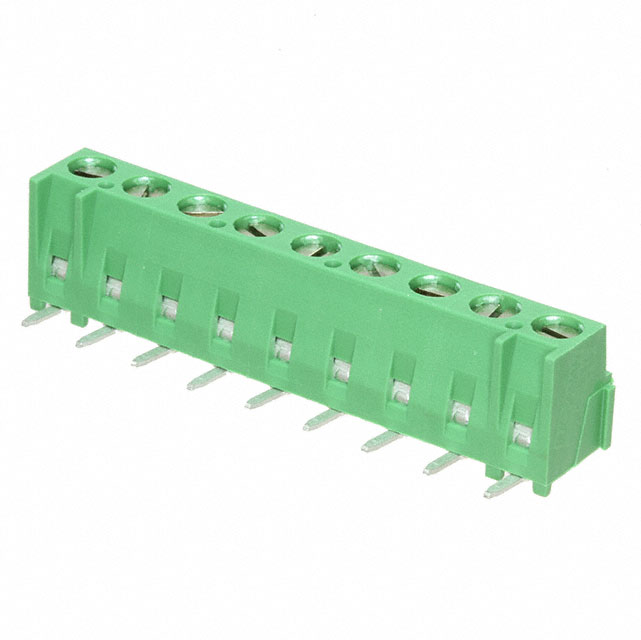

284094-9
Or copy the link below:
- Mfr.Part #
- 284094-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9POS TOP ENT 5.08MM PCB
- Stock
- 45,941
- In Stock ：
- 45,941
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Pitch :
- 0.200 5.08mm
- Packaging :
- Bulk
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 300V
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Series :
- Buchanan
- Safety Approval :
- UL
- Published :
- 2007
- ELV :
- Compliant
- Connector Type :
- Receptacle
- Feature :
- Interlocking (Side)
- Wire Termination :
- Screw - Rising Cage Clamp
- Current Rating :
- 13.5A
- Orientation :
- RIGHT ANGLE
- Length - Tail :
- 3.5mm
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Number of Levels :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Clamp Material - Plating :
- Brass - Nickel Plated
- Screw Material - Plating :
- Brass - Nickel Plated
- Mounting Type :
- Through Hole
- Mating Orientation :
- Vertical with Board
- Contact Material - Plating :
- Brass - Tin Plated
- Screw Thread :
- M3
- Wire Gauge (Min) :
- 16 AWG
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Ways :
- 9
- Color :
- Green
- Termination :
- Screw
- Contact Plating :
- Tin
- Number of Rows :
- 1
- Wire Gauge :
- 16-30 AWG
- Number of Contacts :
- 9
- Wire Gauge (Max) :
- 30 AWG
- Number of Decks :
- 1
- Max Current Rating :
- 13.5A
- Datasheets
- 284094-9
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284094-9 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
284094-9 Features
Buchanan series
284094-9 Applications
There are a lot of TE Connectivity AMP Connectors
284094-9 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
