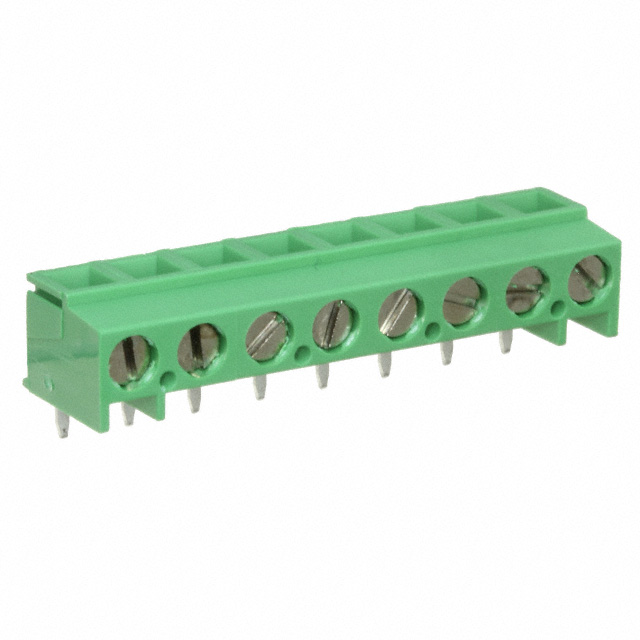

284094-8
Or copy the link below:
- Mfr.Part #
- 284094-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 8POS TOP ENT 5.08MM PCB
- Stock
- 6,323
- In Stock ：
- 6,323
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 2 weeks ago)
- Color :
- Green
- Wire Gauge (Max) :
- 30 AWG
- Flammability Rating :
- UL94 V-0
- Feature :
- Interlocking (Side)
- Factory Lead Time :
- 12 Weeks
- Current Rating :
- 13.5A
- Safety Approval :
- UL
- Orientation :
- RIGHT ANGLE
- Wire Gauge (Min) :
- 30 AWG
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Number of Contacts :
- 8
- Wire Termination :
- Screw - Rising Cage Clamp
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Published :
- 2007
- Number of Decks :
- 1
- Number of Levels :
- 1
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Mating Orientation :
- Vertical with Board
- Pitch :
- 0.200 5.08mm
- Length - Tail :
- 3.5mm
- Screw Thread :
- M3
- Termination :
- Screw
- Number of Rows :
- 1
- Contact Material :
- Brass
- Mount :
- Through Hole
- Wire Gauge :
- 16-30 AWG
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- Buchanan
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 13.5A
- Clamp Material - Plating :
- Brass - Nickel Plated
- Radiation Hardening :
- No
- Contact Material - Plating :
- Brass - Tin Plated
- Additional Feature :
- 94V-0, PA66
- Number of Ways :
- 8
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Voltage - Rated :
- 300V
- RoHS Status :
- RoHS Compliant
- Screw Material - Plating :
- Brass - Nickel Plated
- Datasheets
- 284094-8
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284094-8 Overview
This product is packaged in a Receptacle cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.Buchanan Series product.There are also features like 94V-0, PA66, just to name a few.Its Interlocking (Side) feature makes it more powerful in a number of ways.Through Hole is mounting the part.
284094-8 Features
Buchanan series
284094-8 Applications
There are a lot of TE Connectivity AMP Connectors
284094-8 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
