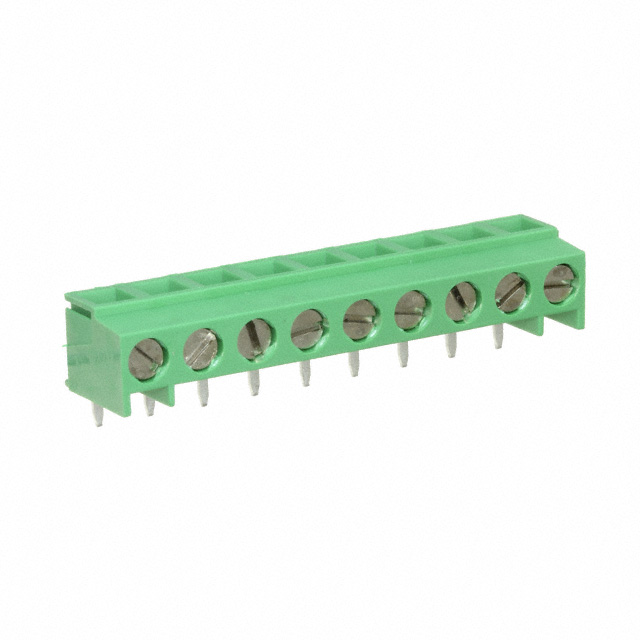

284093-9

Share

Or copy the link below:

Mfr.Part #
284093-9
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
TERM BLK 9POS TOP ENTRY 5MM PCB
Stock
160
In Stock :
160

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Wire to Board
Wire Gauge (Min) :
16 AWG
Voltage - Rated :
300V
Termination :
Screw
Published :
2007
Contact Material - Plating :
Brass - Tin Plated
Contact Plating :
Tin
ELV :
Compliant
Color :
Green
Housing Material :
Polyamide (PA66), Nylon 6/6
Number of Ways :
9
Length - Tail :
3.5mm
Material :
Polyamide
Lifecycle Status :
ACTIVE (Last Updated: 4 months ago)
Radiation Hardening :
No
Orientation :
RIGHT ANGLE
RoHS Status :
RoHS Compliant
Wire Gauge (Max) :
30 AWG
Packaging :
Bulk
Max Current Rating :
13.5A
Screw Material - Plating :
Brass - Nickel Plated
Clamp Material - Plating :
Brass - Nickel Plated
Pitch :
0.197 5.00mm
Wire Gauge :
16-30 AWG
Flammability Rating :
UL94 V-0
Screw Thread :
M3
Number of Levels :
1
Number of Positions Per Level :
9
Mount :
Through Hole
Safety Approval :
UL
Mounting Type :
Through Hole
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mating Orientation :
Vertical with Board
Factory Lead Time :
12 Weeks
Torque - Screw :
0.68 Nm (6 Lb-In)
Feature :
Interlocking (Side)
Number of Rows :
1
Number of Decks :
1
Terminal and Terminal Block Type :
MODULAR TERMINAL BLOCK
Series :
Buchanan
Wire Termination :
Screw - Rising Cage Clamp
Connector Type :
Receptacle
Contact Material :
Brass
Datasheets
284093-9
Introducing Wire to Board TE Connectivity AMP Connectors 284093-9 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, 284093-9 pinout, 284093-9 datasheet PDF, 284093-9 amp .Beyond Wire to Board TE Connectivity AMP Connectors 284093-9 ,we also offer 1985218, 1984989, 1706714, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 284093-9


0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan

284093-9 Overview


Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Buchanan Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.

284093-9 Features


Buchanan series


284093-9 Applications


There are a lot of TE Connectivity AMP Connectors
284093-9 Terminal Blocks applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
