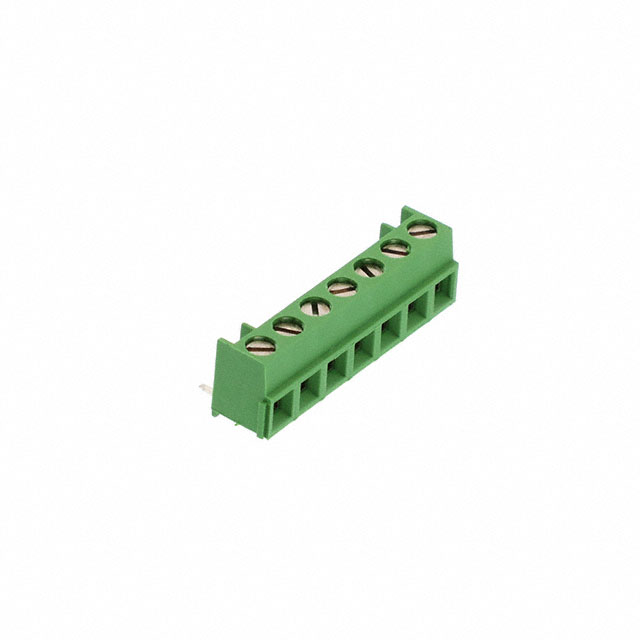

284093-7
Or copy the link below:
- Mfr.Part #
- 284093-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7POS TOP ENTRY 5MM PCB
- Stock
- 315
- In Stock ：
- 315
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Mount :
- Through Hole
- Wire Gauge (Max) :
- 30 AWG
- Connector Type :
- Receptacle
- Max Current Rating :
- 13.5A
- Flammability Rating :
- UL94 V-0
- Published :
- 2007
- Voltage - Rated :
- 300V
- Number of Decks :
- 1
- Safety Approval :
- UL
- Contact Plating :
- Tin
- Mating Orientation :
- Vertical with Board
- Termination :
- Screw
- Feature :
- Interlocking (Side)
- Number of Levels :
- 1
- Number of Positions Per Level :
- 7
- Contact Material - Plating :
- Brass - Tin Plated
- Wire Termination :
- Screw - Rising Cage Clamp
- Length - Tail :
- 3.5mm
- Clamp Material - Plating :
- Brass - Nickel Plated
- Packaging :
- Bulk
- Series :
- Buchanan
- ECCN Code :
- EAR99
- Wire Gauge :
- 16-30 AWG
- ELV :
- Compliant
- Color :
- Green
- Additional Feature :
- PA66, 94V-0
- HTS Code :
- 8536.69.40.40
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Number of Rows :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Wire Gauge (Min) :
- 16 AWG
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Pitch :
- 0.197 5.00mm
- Material :
- Polyamide
- Radiation Hardening :
- No
- Mounting Type :
- Through Hole
- Screw Material - Plating :
- Brass - Nickel Plated
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Screw Thread :
- M3
- Number of Ways :
- 17
- Factory Lead Time :
- 12 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Datasheets
- 284093-7
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284093-7 Overview
Receptacle packaging is included.This device has a mounting type of Through Hole.We package the product with a Bulk case.The product is part of the Buchanan Series.Additionally, there are features like PA66, 94V-0, just to name a few.This feature makes it more powerful in a number of ways due to its Interlocking (Side) feature.You've got Through Hole mounted on the part.
284093-7 Features
Buchanan series
284093-7 Applications
There are a lot of TE Connectivity AMP Connectors
284093-7 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
