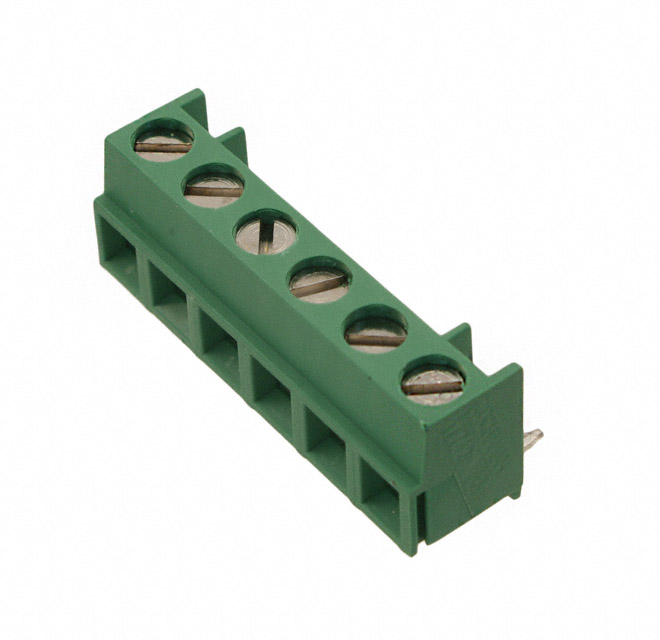

284093-6
Or copy the link below:
- Mfr.Part #
- 284093-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 6POS TOP ENTRY 5MM PCB
- Stock
- 45,949
- In Stock ：
- 45,949
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Packaging :
- Bulk
- ELV :
- Compliant
- Number of Contacts :
- 6
- Wire Termination :
- Screw - Rising Cage Clamp
- Lead Free :
- Lead Free
- Number of Rows :
- 1
- Number of Decks :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Wire Gauge (Min) :
- 16 AWG
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Material :
- Polyamide
- Wire Gauge :
- 16-30 AWG
- Published :
- 2007
- Wire Gauge (Max) :
- 30 AWG
- Safety Approval :
- UL
- Max Voltage Rating (AC) :
- 300V
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Clamp Material - Plating :
- Brass - Nickel Plated
- Min Operating Temperature :
- -40°C
- Series :
- Buchanan
- Number of Ways :
- 6
- Length - Tail :
- 3.5mm
- Factory Lead Time :
- 12 Weeks
- Orientation :
- RIGHT ANGLE
- Width :
- 8.2mm
- Max Operating Temperature :
- 110°C
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Termination :
- Screw, Solder
- Number of Levels :
- 1
- Mating Orientation :
- Vertical with Board
- Screw Material - Plating :
- Brass - Nickel Plated
- Pitch :
- 0.197 5.00mm
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Color :
- Green
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Screw Thread :
- M3
- Max Current Rating :
- 13.5A
- Contact Material :
- Brass
- Voltage - Rated :
- 300V
- Radiation Hardening :
- No
- Feature :
- Interlocking (Side)
- Connector Type :
- Receptacle
- Datasheets
- 284093-6
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG Buchanan
284093-6 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Buchanan Series.When the temperature is below 110°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.
284093-6 Features
Buchanan series
284093-6 Applications
There are a lot of TE Connectivity AMP Connectors
284093-6 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
